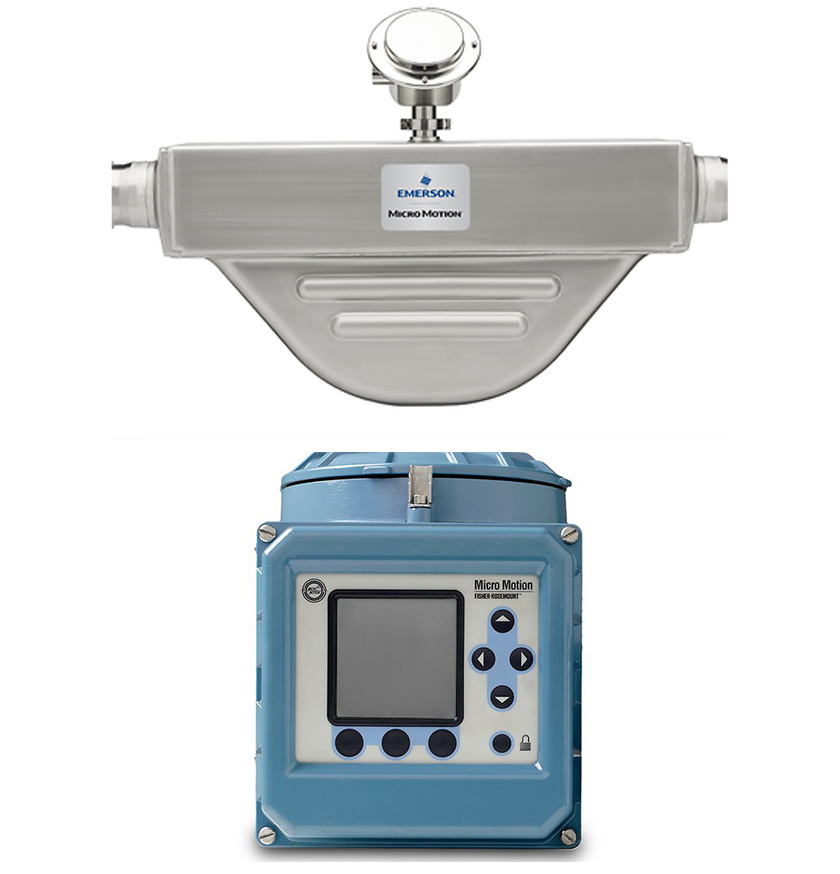

micro motion coriolis,Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 3700 Transmitter

We recommend the Micro Motion H-Series Hygienic Coriolis Meter, which combines the H400F sensor with the 3700 transmitter, specifically designed for hygienic applications. This system offers flow accuracy up to ±0.05% and features a self-draining design that enhances product changeover efficiency. The 3700 transmitter integrates sensor functions to reduce operating costs, while the user-friendly LCD display simplifies configuration. We provide excellent after-sales service and ample inventory to help you maintain a competitive edge in the market.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 1,450 psig (100 barg)
Meter Approvals, Calibrations, and Certifications • CSA
• IECEx
• ATEX
Micro Motion 3700 Controller And Transmitter Remote Field-Mount
Output Variables Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local Display Multi-line LCD panel
Backlit LCD, 128 × 128 pixel, bitmap
Adjustable contrast
Non-glare, chemical-resistant acrylic lens
Large push buttons with tactile feedback
Software-defined function keys
Power AC option:
85 to 265 VAC, 50/60 Hz, 30 VA
DC option:
18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals • Two active 4–20 mA
• Three discrete outputs
• One 2-wire frequency output
• One 2-wire frequency input
• Two discrete momentary inputs
HART/WirelessHART Bell 202 signal superimposed on the primary milliamp output
Mounting Options Remote field-mount
Application Types • Batch controller
• Custody transfer
• Two-phase flow/entrained gas
• Meter verification
Hazardous Approvals • UL
• CSA
• ATEX
• NEPSI
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Minimize Variability Superior sensitivity in a compact design for process control
Product Consistency Ensure quality with superior density measurement
Fast Product Change-Over Self-draining design with superior temperature stability
Material Options Highly polished 316L stainless steel with surface finish up to 15 Ra
Measurement Integrity Real-time assurance with Smart Meter Verification
Two-Phase Flow Capabilities Ideal for batching, loading, and entrained air applications
Approvals and Certifications Broad range including CSA, ATEX, IECEx, IP66/67, and NAMUR
SIP, CIP, and Sanitary Compliance Designed for environments requiring 3-A compliance
Micro Motion 3700 Controller And Transmitter Remote Field-Mount
Cost Reduction Decrease labor, maintenance, and operating costs with built-in PLC capabilities
Efficiency Improvement Accelerate throughput and enhance product quality
Configuration Capabilities Full setup without external tools
User Interaction Large, programmable display with descriptive alarms for easy operation
Uptime and Consistency MVD technology maximizes response and multivariable measurement
