Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|

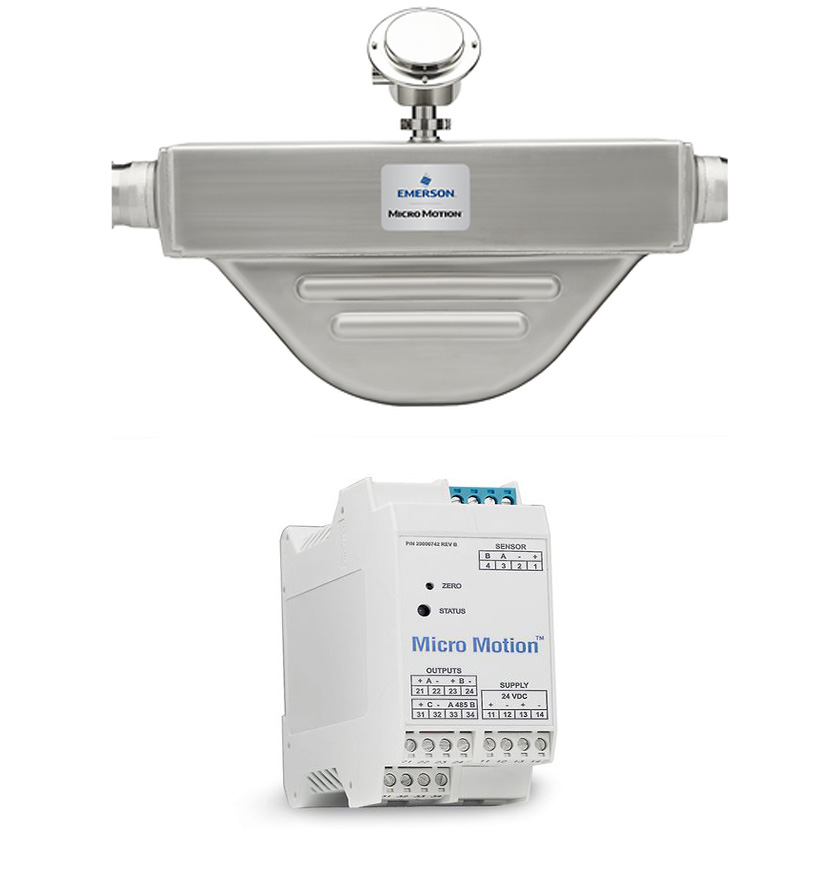

| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 2500 Compact Control Room Multivariable Flow And Density Transmitter | None |
| Output Variables | • Mass & volume flow • Net product content / flow • Temperature • Density • Concentration |
| Local Display | None |
| Power | Minimum 19.2 to 28.8 VDC 6.3 watts Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements |
| Input/Output Signals | • One active 4–20 mA output • One active frequency output |
| HART | Bell 202 signal superimposed on the primary milliamp output |
| Mounting Options | • Mounted on 35 mm rail • Rail must be grounded |
| Application Types | • Continuous process control • Two-phase flow/entrained gas • Meter verification |
| Hazardous Approvals | Suitable for non-hazardous environments only |
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Process Control | Minimize variability with superior sensitivity in a compact design |
| Density Measurement | Ensure product consistency and quality with superior density measurement |
| Product Change-over | Enable fast product change-over with self-draining design and superior temperature stability |
| Material Options | Highly polished 316L stainless steel with surface finish up to 15 Ra |
| Smart Meter Verification | Real-time and in-process measurement integrity assurance |
| Two-phase Flow Capabilities | Superior performance for batching, loading, and entrained air applications |
| Meter Approvals and Certifications | • CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C, and D) • ATEX • IECEx • Ingress Protection 66/67 • NAMUR |
| Sanitary Environment Use | SIP, CIP, and sanitary environments with 3-A compliance |
| Micro Motion 2500 Compact Control Room Transmitter | Multivariable Flow And Density Transmitter |
| Wiring Efficiency | Cut wiring expenses with remote-mount transmitter using 35 mm DIN rail |
| Compact Design | Fits in control rooms, requiring just 0.03ft³ of space |
| Simplified Configuration | Four-wire connection to sensors for power and signal |
| Performance Diagnosis | Diagnose performance under entrained gas and batching from empty applications with MVD digital processing |
| Smart Meter Verification | Real-time and in-process measurement integrity assurance |
