Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|

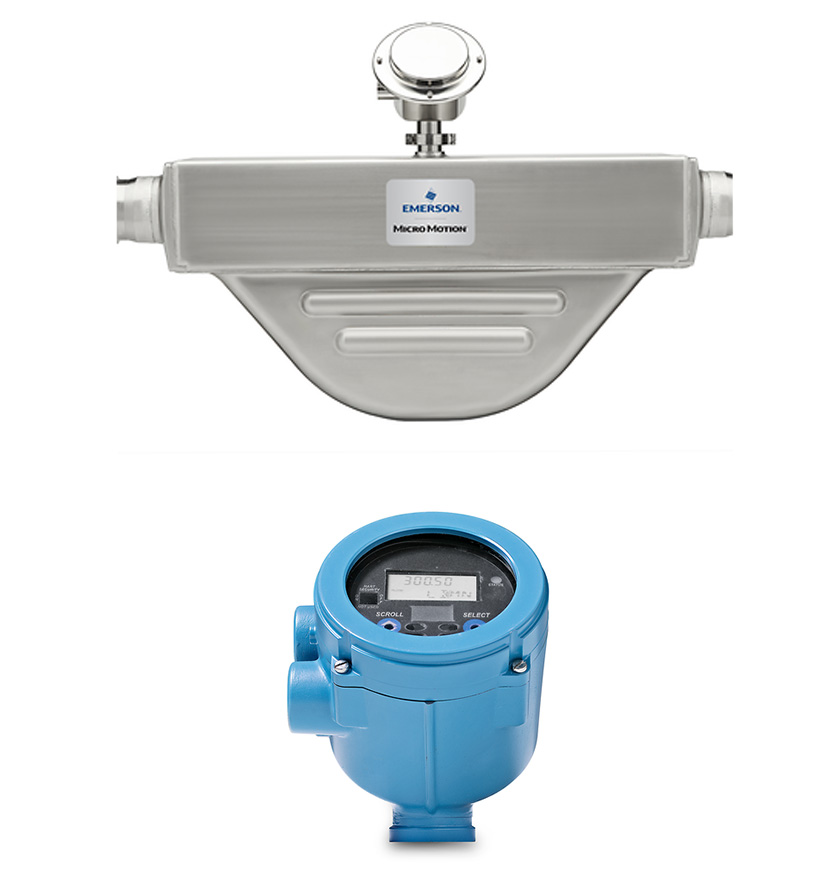

| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 2400S Compact, Integral-Mount Transmitter | |
| Output Variables | Mass & volume flow Net product content / flow Temperature Density Concentration |
| Local Display | Standard user interface with 2-line LCD panel Two clips for HART/Bell 202 connections Two membrane pushbuttons for local operation Glass or plastic lens options |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage 85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum 18–100 VDC, 4 watts typical, 7 watts maximum |
| Input/Output Signals (Analog Output Option) | Channel A: One active 4–20 mA output (Not intrinsically safe) Channel B: Configurable as one of the following: • One active or passive frequency output • One active or passive discrete output • One active or passive discrete input |
| Input/Output Signals (PROFIBUS-DP Option) | Digital 2-way PROFIBUS-DP signal |
| Input/Output Signals (DeviceNet Option) | Digital 2-way DeviceNet signal (Now Obsolete) |
| HART | Bell 202 signal superimposed on the primary milliamp output |
| Mounting Options | Field mount, integral with sensor |
| Application Types | Continuous process control Two-phase flow/entrained gas Meter verification |
| Hazardous Approvals | C1D2 Zone 2 |
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Process Control | Minimize variability with superior sensitivity in a compact design |
| Product Consistency | Ensure product consistency and quality with superior density measurement |
| Product Change-over | Enable fast product change-over with self-draining design and superior temperature stability |
| Material Options | Highly polished 316L stainless steel with surface finish up to 15 Ra |
| Smart Meter Verification | Real-time and in-process measurement integrity assurance |
| Two-Phase Flow Capabilities | Superior for batching, loading, and entrained air applications |
| Certifications | • CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D) • ATEX • IECEx • Ingress Protection 66/67 • NAMUR |
| Sanitary Use | Suitable for SIP, CIP, and sanitary environments requiring 3-A compliance |
| Micro Motion 2400S Transmitter | Compact, Integral-Mount Transmitter |
| Diagnostics | Receive diagnostics for entrained gas and batching with MVD digital processing |
| Smart Meter Verification | Real-time and in-process measurement integrity assurance |
| Two-Phase Flow | Best capability for batching, loading, and entrained gas applications |
| Display Buttons | Optical buttons eliminate need to remove transmitter cover |
| Hazardous Area Approval | Class 1, Div. 2 (Zone 2) hazardous area approval for sensor and transmitter |
