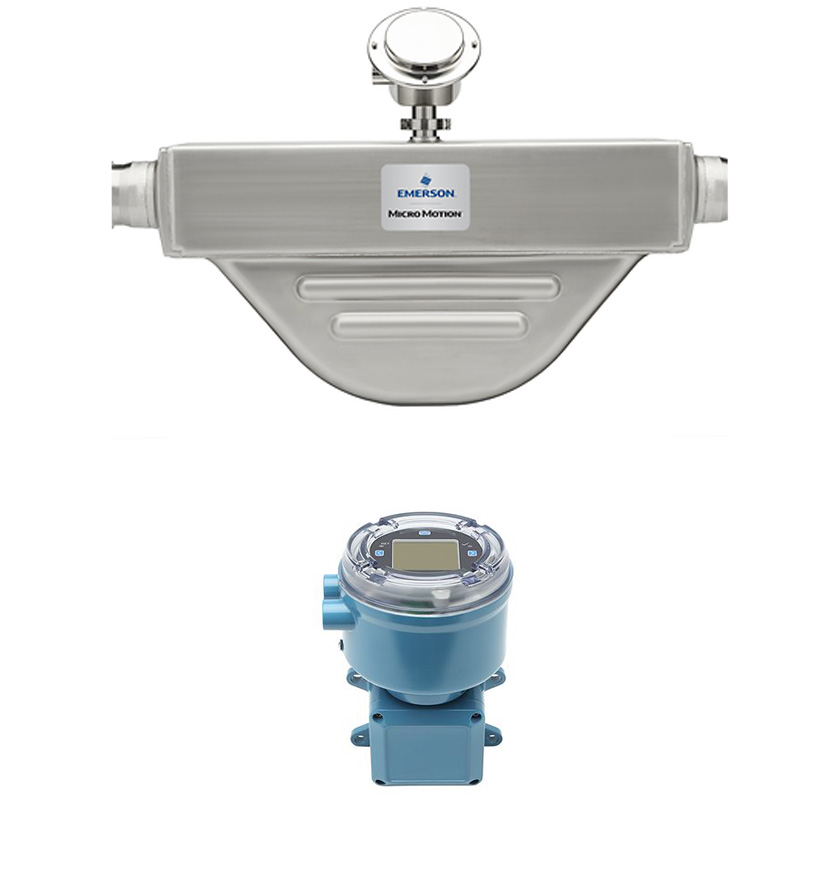

micro motion coriolis,Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 1600 Transmitter
1/1

micro motion coriolis,Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 1600 Transmitter

As a supplier, we are proud to offer the Micro Motion H-Series Hygienic Coriolis Meter, featuring the H400F sensor and 1600 transmitter, specifically designed for hygienic applications. The H400F sensor, made of 316L stainless steel with a 15 RA surface finish, ensures excellent liquid mass flow accuracy (±0.05%) and repeatability (±0.025%), along with outstanding two-phase flow measurement capabilities. Paired with the 1600 transmitter, which supports Ethernet/IP and PoE functions, it enables easy remote monitoring and data transmission.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Specification Details
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Mass Flow Accuracy (Liquid) Up to ±0.05% of rate
Mass Flow Repeatability (Liquid) Up to ±0.025% of rate
Volume Flow Accuracy (Liquid) Up to ±0.05% of rate
Volume Flow Repeatability (Liquid) Up to ±0.025% of rate
Mass Flow Accuracy (Gas) Up to ±0.35% of rate
Mass Flow Repeatability (Gas) Up to ±0.175% of rate
Density Accuracy (Liquid) Up to ±0.0005 g/cm³ (±0.5 kg/m³)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 1,450 psig (100 barg)
Approvals and Certifications CSA, IECEx, ATEX
Micro Motion 1600 Compact Transmitter Graphical backlit display, four-button mechanical controls
Power Supply Power over Ethernet (PoE), 18 to 100 VDC, 6 watts typical
Universal Service Port Allows configuration and data transfer via USB-C
Ethernet Version Supports EtherNet/IP and Modbus TCP
HART® Version Supports full HART® communication
Modbus Version Implemented on RS-485 physical layer
Mounting Options Field-mount aluminum, hygienic stainless steel housing
Application Types Smart Meter Verification, discrete batch control, filling and dosing
Hazardous Approvals Class I, Div. 2; Zone 2
Micro Motion H400F Hygienic Coriolis Meter 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish
Minimize Variability Superior sensitivity in a compact design for process control
Product Consistency Ensure quality with superior density measurement
Fast Product Change-Over Self-draining design with superior temperature stability
Material Options Highly polished 316L stainless steel, surface finish up to 15 Ra
Real-Time Assurance Smart Meter Verification for measurement integrity
Two-Phase Flow Capabilities Compact, hygienic SST transmitter housing for batching and loading
Certifications Broad range including; CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Sanitary Compliance Use in SIP, CIP environments with 3-A compliance
Micro Motion 1600 Compact Transmitter Remote rack/panel-mount capabilities
Installation & Integration Ethernet/IP and Power Over Ethernet (PoE) capabilities
Data Historian Capture insights on process events and fluid quality
Meter Health Check Check in fewer than 90 seconds with Smart Meter Verification
Quality Assurance Advanced software features like Concentration Measurement
Graphic Display Supports 8 languages with software rotation
