Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|

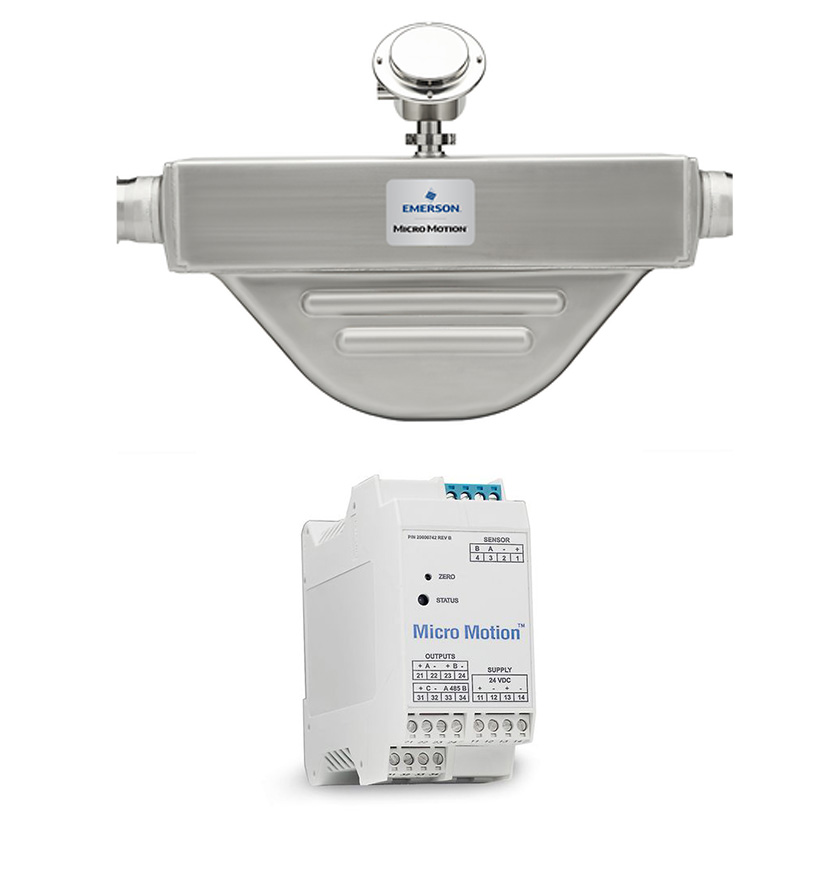

| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Meter Approvals, Calibrations, and Certifications | • CSA • IECEx • ATEX |
| Micro Motion 1500 Compact Control Room Single Variable Flow Transmitter | |
| Available Outputs | Model 1500: for one flow rate variable (milliamp and frequency/pulse output) Model 2500: for simultaneous monitoring of multiple flow variables |
| Housing | Polyamide PA 6.6 |
| Power | Minimum 19.2 to 28.8 VDC 6.3 watts Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements |
| Input/Output Signals | One active 4–20 mA output One active frequency output HART Bell 202 signal is superimposed on the primary milliamp output |
| Mounting Options | Remote-mount control room only (mounted on 35 mm rail, rail must be grounded) |
| Application Types | • Continuous process control • Two-phase flow/entrained gas • Filling & dosing • Meter verification |
| Hazardous Approvals | Suitable for non-hazardous environments only |
| Micro Motion H400F Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 15 RA Finish |
| Minimize Variability | Superior sensitivity in a compact design for process control |
| Product Consistency | Ensure quality with superior density measurement |
| Fast Change-over | Self-draining design with superior temperature stability |
| Material Options | Highly polished 316L stainless steel with up to 15 Ra finish |
| Measurement Assurance | Real-time integrity assurance with Smart Meter Verification |
| Two-phase Flow Capabilities | Compact hygienic SST transmitter housings for batching and loading |
| Certifications | Broad range including; CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Sanitary Compliance | Use in SIP, CIP environments where 3-A compliance is required |
| Micro Motion 1500 Compact Control Room Transmitter | Single Variable Flow Transmitter |
| Remote-Mount Benefits | Cut wiring expenses using 35 mm DIN rail |
| Space Requirement | 0.03ft³ compared to 1.0ft³ for typical Coriolis transmitters |
| Configuration Simplification | Four-wire connection for power and signal |
| Performance Diagnosis | MVD digital processing for entrained gas and batching diagnostics |
| Measurement Integrity | Real-time assurance with Smart Meter Verification |
