Description
| Brand |
Micro Motion |
|---|

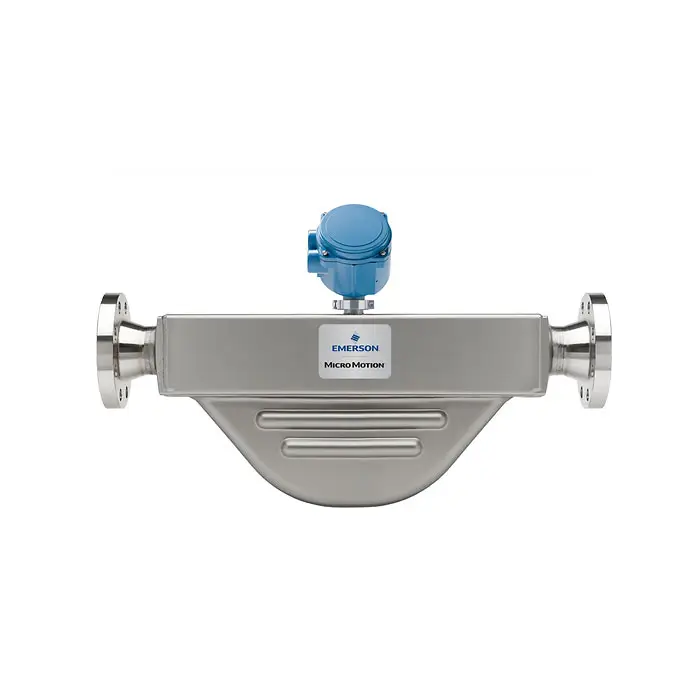

As a B2B supplier, the Micro Motion F300S Coriolis Meter offers industrial clients a high-precision solution for flow and density measurement. We ensure fast delivery and robust supply chain management, backed by multiple international certifications (such as CSA, ATEX, IECEx) to guarantee safety and reliability. Additionally, we provide comprehensive technical support and high-quality after-sales service to help you enhance production efficiency and maintain business continuity.
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional), ±0.0005 g/cm³ (0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Feature | Description |
|---|---|
| Accurate Measurement | Highly accurate mass volume flow and density measurement for compact, drainable designs. |
| Material Options | Available in 316L Stainless Steel and C-22 nickel alloy. |
| Diagnostics and Logging | On-board historian and logging for extensive process and meter diagnostics. |
| Approvals and Certifications | CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR, and more. |
| Custody Transfer Approvals | MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil. |
| Fast Response and Accuracy | Unmatched MVD transmitter technology ensures fast response and accurate batch measurements. |
| Smart Meter Verification | Real-time and in-process measurement integrity assurance. |
| 3D Model Interaction | Learn more by interacting with our 3D model of F-Series Coriolis Flow and Density Meters. |
