Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, we are proud to offer the Micro Motion F200S Coriolis Meter, made of 316L stainless steel and designed for high-precision flow measurement. With robust supply chain management, we ensure ample inventory and fast delivery to meet our customers’ production needs. Additionally, we provide comprehensive technical support and high-quality after-sales service to ensure a smooth experience for our customers. By choosing the F200S, you will benefit from efficient, accurate flow measurement and reliable customer service.
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional), ±0.0005 g/cm³ (0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |

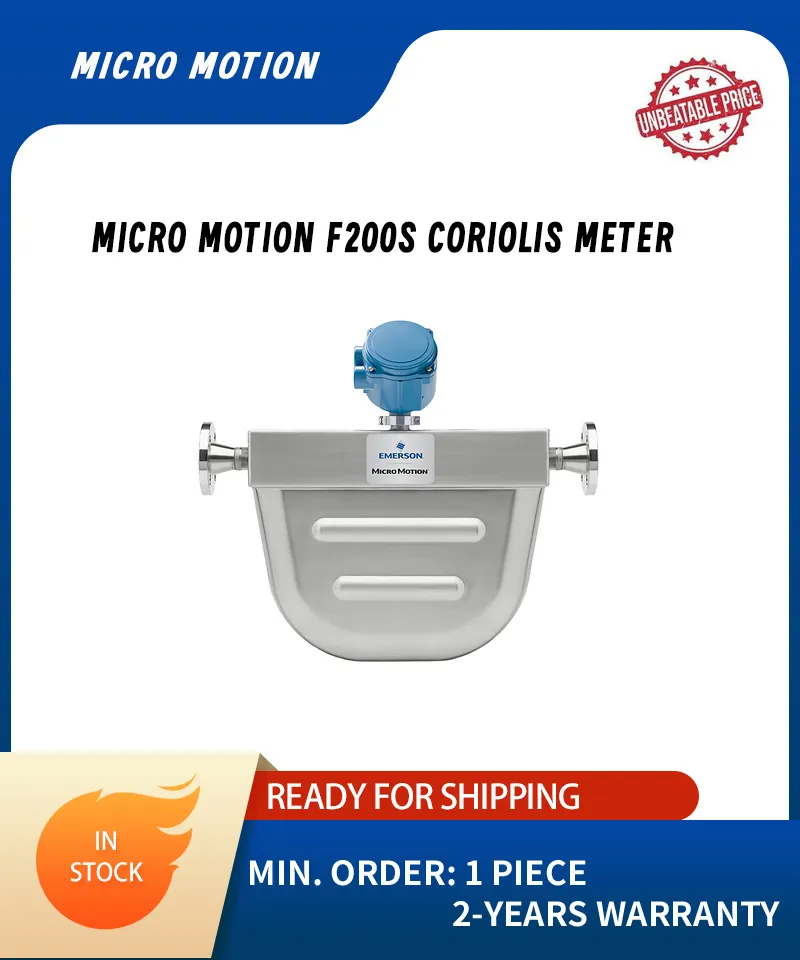

Micro Motion F200S Coriolis Meter
| Feature | Details |
|---|---|
| Measurement Accuracy | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design. |
| Materials | Available in 316L Stainless Steel and C-22 nickel alloy. |
| Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging. |
| Certifications | Broad range of meter approvals, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Custody Transfer Approvals | Approved by MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil. |
| Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology. |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. |
| 3D Model Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters. |
