Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, the Micro Motion F100H Coriolis Meter offers you an outstanding flow measurement solution, ensuring high accuracy and repeatability suitable for various process conditions. Its compact, drainable design, along with material options in 316L stainless steel and C-22 nickel alloy, meets safety and compliance requirements. Our robust supply chain management enables quick order responses, ensuring timely delivery, while our professional after-sales service helps you enhance business efficiency and competitiveness. Choose our product to support your success.
| Specification | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (standard) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 2,160 psig (149 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |

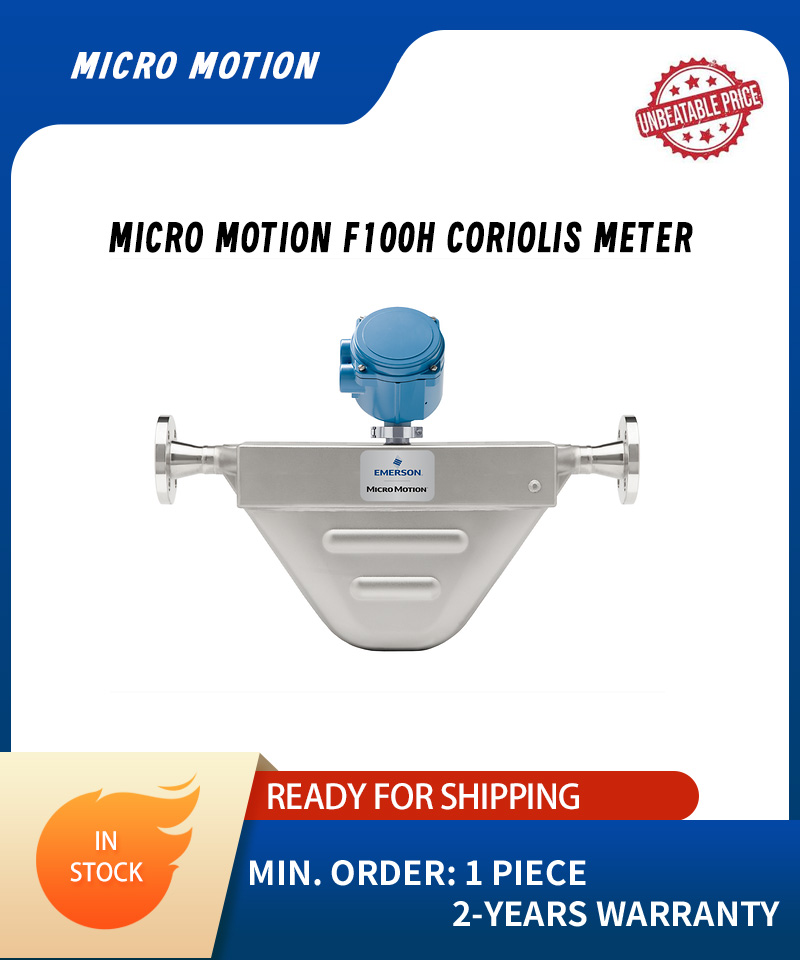

Micro Motion F100H Coriolis Meter
| Feature | Description |
|---|---|
| High Accuracy | Achieve highly accurate mass volume flow and density measurement in compact, drainable designs. |
| Material Options | Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes. |
| Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics, including on-board historian and logging. |
| Certifications | Broad range of approvals, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Custody Transfer Approvals | Approved by MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil. |
| Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology. |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. |
| 3D Model Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters. |
