Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, our Micro Motion F100B Coriolis Meter offers exceptional quality and reliability, suitable for a wide range of industrial applications. The flow meter is made from high-performance materials, ensuring precise measurement of mass and volume even in harsh environments. Its compact design allows for easy installation and maintenance, while comprehensive diagnostic features enable real-time monitoring of flow conditions. We provide multiple international certifications to meet strict safety and performance standards. Choosing our Micro Motion F100B not only enhances measurement efficiency but also offers premium after-sales service and technical support, helping clients optimize processes and reduce costs.
| Parameter | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 2,160 psig (149 barg) |
| Meter approvals, calibrations, and certifications | • UL • CSA • IECEx • NEPSI • ATEX • Ingress Protection • EMC effects |

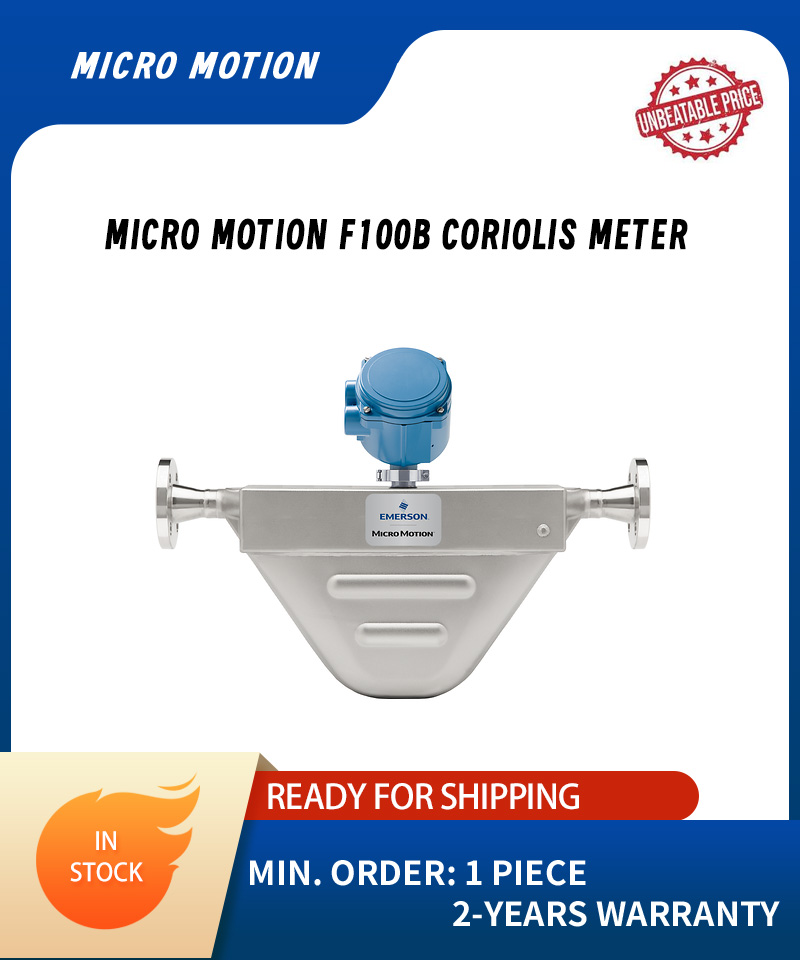

Micro Motion F100B Coriolis Meter
| Feature | Description |
|---|---|
| Accurate Measurement | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design. |
| Material Options | Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes. |
| Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging. |
| Certifications | Broad range of meter approvals and certifications, including; CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Custody Transfer Approvals | Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil. |
| Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology. |
| Integrity Assurance | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. |
| 3D Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters. |
