Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, the Micro Motion F100A Coriolis Meter stands out for its exceptional cost-performance ratio and high measurement accuracy. Our robust supply chain ensures fast delivery, helping you maintain smooth operations. With competitive pricing and excellent after-sales support, we are committed to enhancing your operational efficiency and cost management. Choose the F100A to invest in precise measurement while gaining a reliable partner.
| Specification | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |

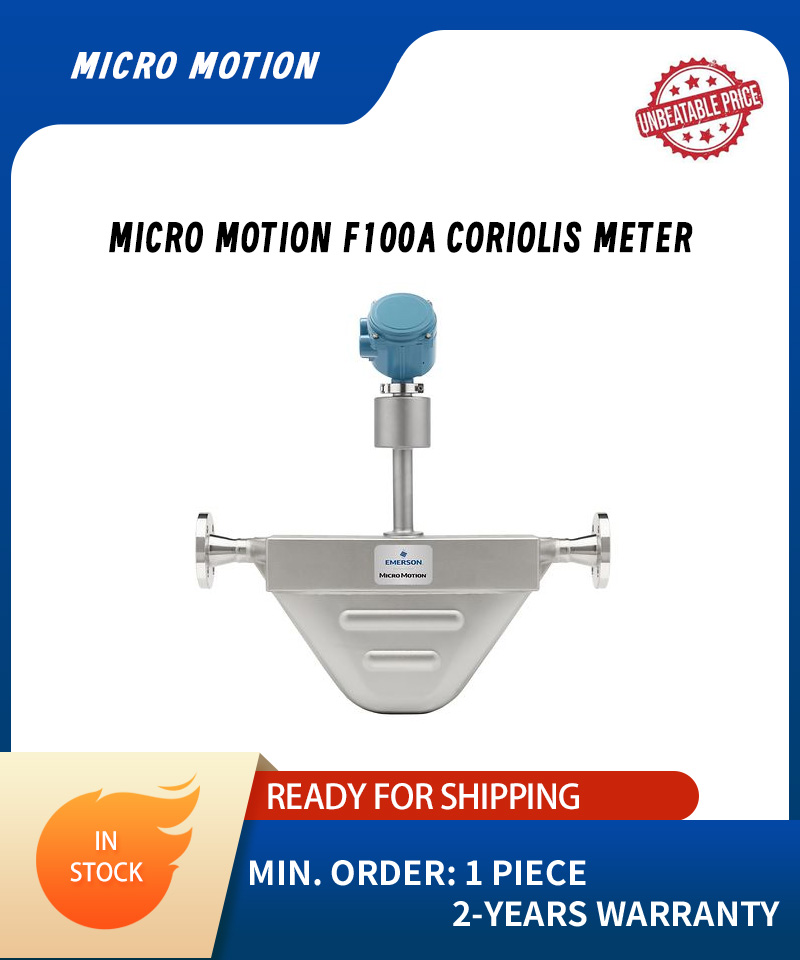

Micro Motion F100A Coriolis Meter
| Feature | Description |
|---|---|
| Accurate Measurement | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design. |
| Material Options | Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes. |
| Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging. |
| Certifications | Broad range of approvals, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Custody Transfer Approvals | Approvals from MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil. |
| Fast Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology. |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. |
| 3D Model Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters. |
