Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, we offer the Micro Motion F050P Coriolis Meter, ensuring high-precision measurement of mass, volume flow, and density in high-pressure environments. With a robust supply chain and ample inventory, we provide competitive pricing and fast delivery. Our professional team offers comprehensive technical support to help customers optimize performance and enhance production efficiency. By choosing the F050P, you gain not only a high-quality product but also efficient service and attractive pricing, making us a reliable partner for your success.
| Specification | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 5,000 psig (344 barg) |
| Meter approvals, calibrations, and certifications | UL CSA IECEx NEPSI ATEX Ingress Protection EMC effects |

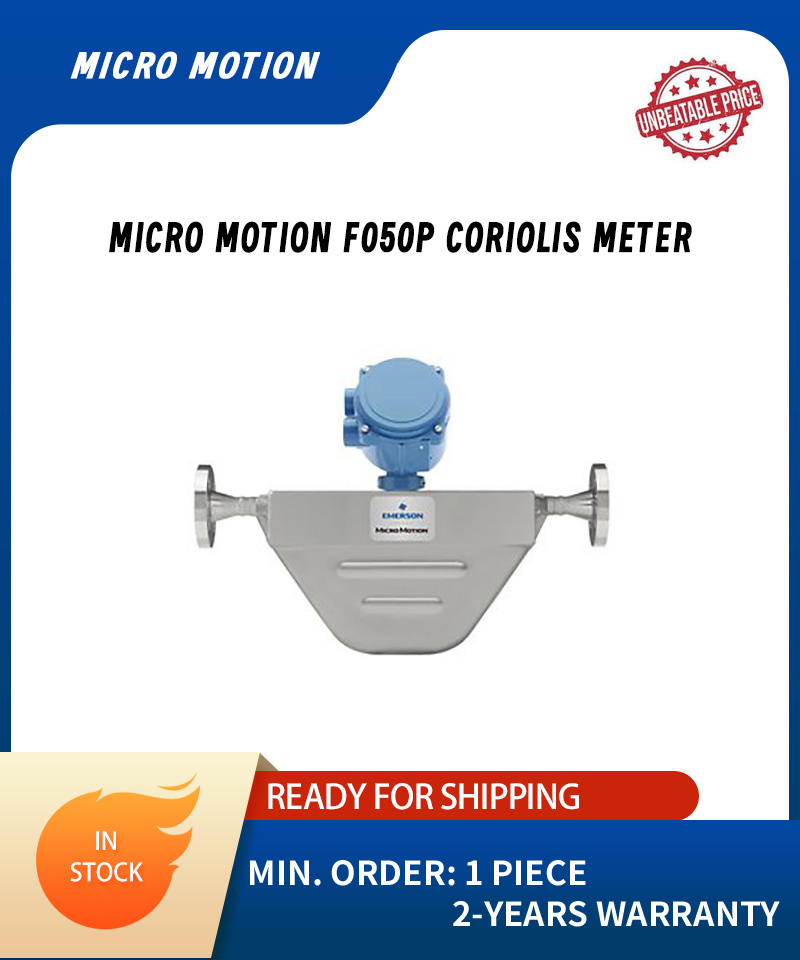

Micro Motion F050P Coriolis Meter
| Feature | Description |
|---|---|
| Measurement Accuracy | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design |
| Material Options | Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes |
| Configurations | Available with a rupture disk or purge fitting case |
| Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging |
| Certifications | Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Custody Transfer Approvals | Custody Transfer Approvals from MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil |
| Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| 3D Model Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters |
