Description
| Brand |
Micro Motion |
|---|
As a B2B supplier, we offer the Micro Motion F025H Coriolis Meter, designed for compact performance and suitable for various applications. We maintain ample inventory to ensure fast delivery, helping you meet market demands promptly. Our products come with competitive pricing, along with excellent after-sales service and technical support, ensuring smooth operations and continuous growth for your business. Choose us for reliable measurement solutions and comprehensive support.
| Specification | Value |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 2,160 psig (149 barg) |
| Meter approvals, calibrations, and certifications | • UL • CSA • IECEx • NEPSI • ATEX • Ingress Protection • EMC effects |

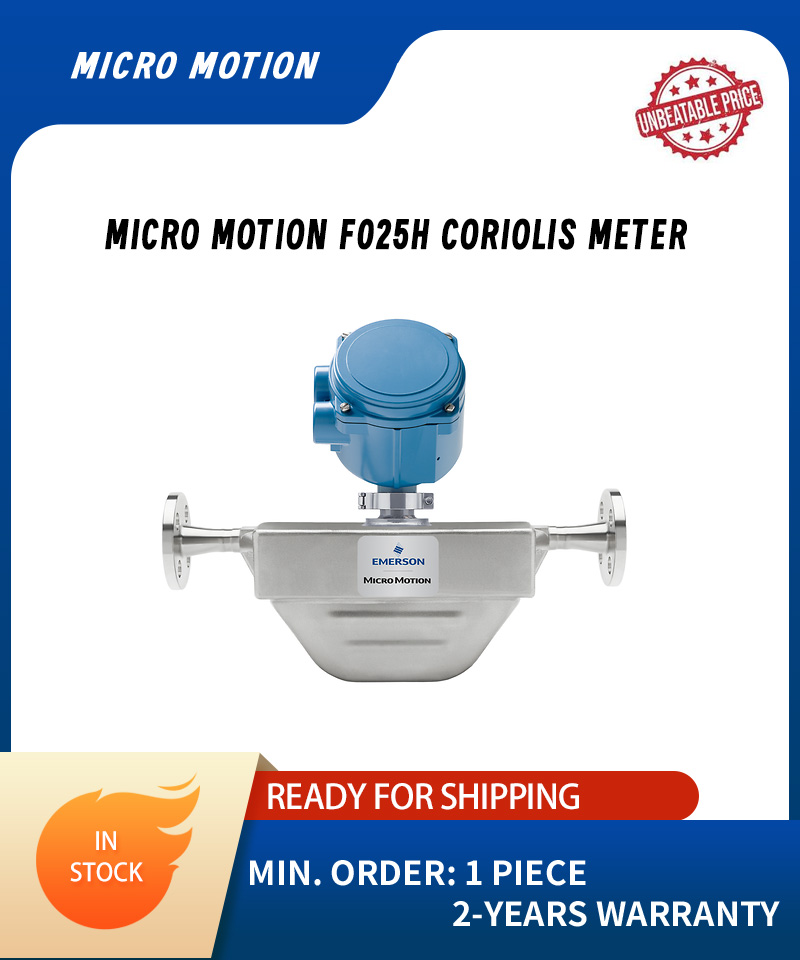

Micro Motion F025H Coriolis Meter
| Feature | Description |
|---|---|
| Highly Accurate Measurement | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design. |
| Material Options | Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes. |
| Process Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging. |
| Approvals and Certifications | Broad range of meter approvals and certifications, including CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Custody Transfer Approvals | Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil. |
| Fast Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology. |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. |
| 3D Model Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters. |
