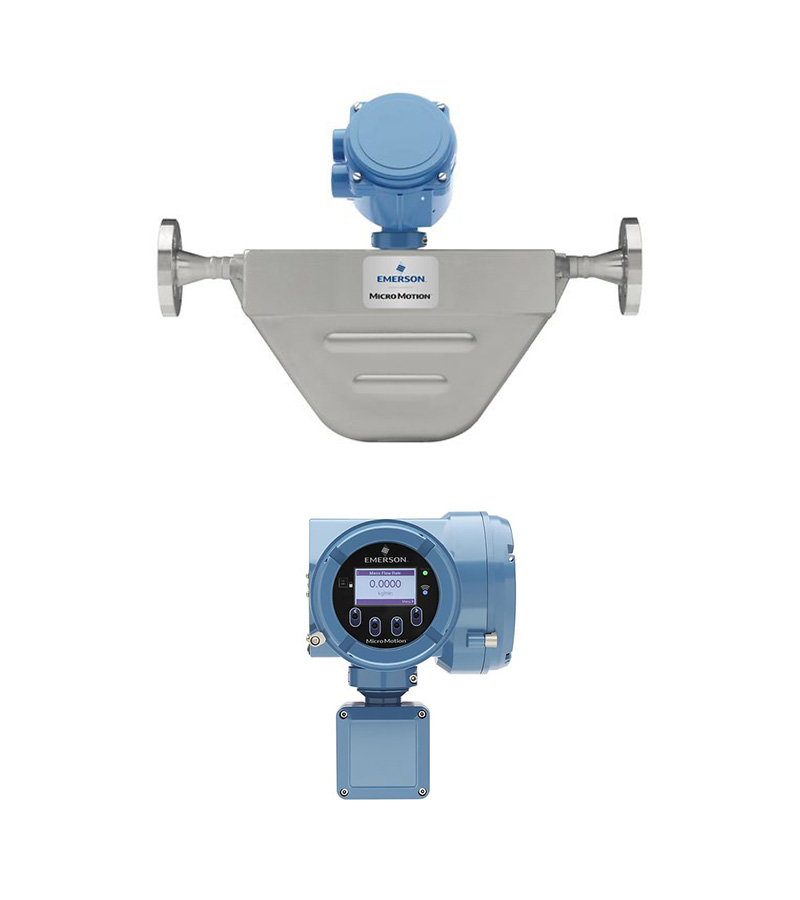

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 5700 Transmitter
1/1

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 5700 Transmitter

As a supplier, we proudly offer the Micro Motion F-Series Coriolis Meter, which includes the F050P sensor and 5700 transmitter, featuring exceptional measurement accuracy and a wide range of applications. Our robust inventory and competitive pricing ensure quick fulfillment of customer needs, while we provide comprehensive technical support and high-quality after-sales service to help your production line operate efficiently and reliably. Choose us for the perfect combination of outstanding products and timely support.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 5,000 psig (344 barg)
Approvals, Calibrations, and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 5700 Field-Mount Transmitter
Display Graphical backlit display with four-button optical controls and flowmeter-status LED
Supported Languages English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese
Power Supply 85 to 240 VAC, 50/60 Hz, 6 watts typical; 18 to 100 VDC, 6 watts typical
Universal Service Port Design allows for connection and data transfer using standard equipment
Configurable I/O Version Up to 5 licensable channels: 4-20 mA outputs, pulse outputs, discrete outputs/inputs, Modbus/RS-485
Wireless Communication WirelessHART available with the 775 Smart Wireless THUM adapter
Ethernet Version Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, PROFINET
Mounting Options Field-mount aluminum and stainless steel housing options
Application Types Smart Meter Verification, discrete batch control, petroleum measurement
Certificates/Approvals Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2; SIL/SIS Certification for SIL2 and SIL3
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Measurement Capability Highly accurate mass volume flow and density measurement in a compact, drainable design
Material Options Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
Case Options Available with a rupture disk or purge fitting case
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Approvals and Certifications Broad range of meter approvals, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Custody Transfer Approvals MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil
Response Rates Fast response rates with accurate batch and process measurement using MVD transmitter technology
Measurement Integrity Real-time and in-process measurement integrity assurance with Smart Meter Verification
3D Model Interaction Interact with a 3D model to learn more about F-Series Coriolis Flow and Density Meters
Micro Motion 5700 Field-Mount Transmitter
Installation Fast, flexible installations with a native Ethernet architecture and connections
Response Capability Best response in challenging applications such as meter proving, filling, dosing, and batching
Data Historian Capture short- and long-term insights about process events, fluid quality, and measurement stability
I/O Channels Monitor up to 5 fully configurable I/O channels
Health Monitoring Check meter health in fewer than 90 seconds with Smart Meter Verification
Calibration Confirmation Easily confirm calibration with zero verification
Process Control Improve process control with real-time indication of multi-phase flow events
Installation Expertise Minimize time and expertise needed to install and operate the flow meter
