Description
| Brand |
Micro Motion |
|---|

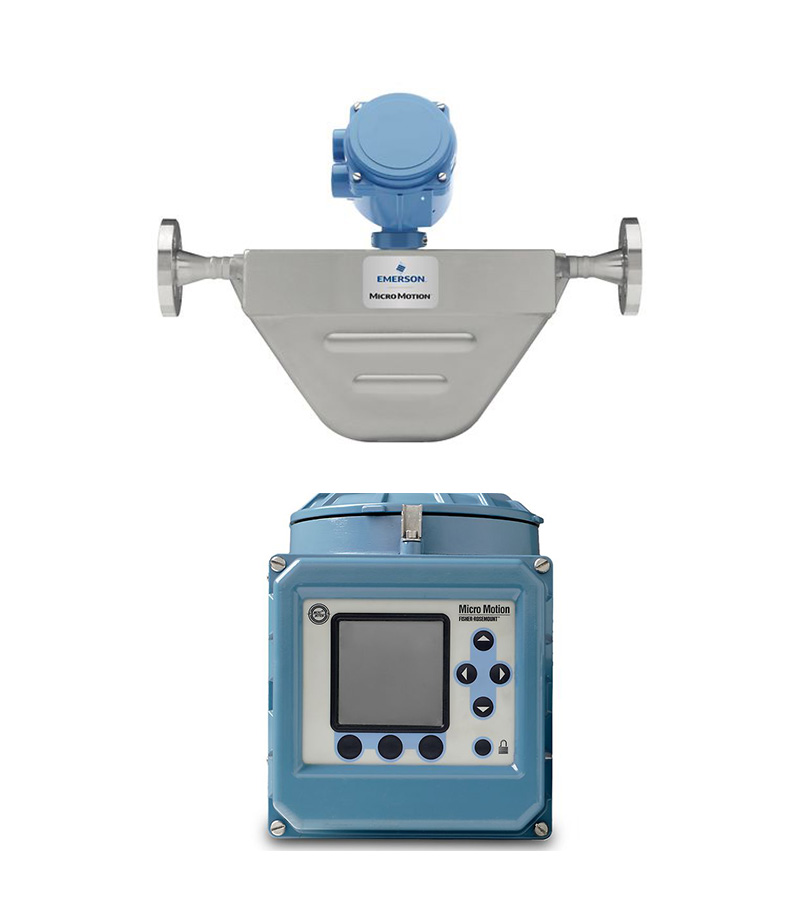

| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 3700 Controller And Transmitter | Remote Field-Mount |
| Output Variables | Mass & volume flow, Net product content / flow, Temperature, Density, Concentration |
| Local Display | Multi-line LCD panel, Backlit LCD, 128 × 128 pixel |
| Power | AC option: 85 to 265 VAC, 50/60 Hz, 30 VA DC option: 18 to 30 VDC, 18 watts typical, 25 watts maximum |
| Input/Output Signals | Two active 4–20 mA, Three discrete outputs, One 2-wire frequency output, One 2-wire frequency input, Two discrete momentary inputs |
| Mounting Options | Remote field-mount |
| Application Types | Batch controller, Custody transfer, Two-phase flow/entrained gas, Meter verification |
| Hazardous Approvals | UL, CSA, ATEX, NEPSI |
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Key Features | Achieve highly accurate mass volume flow and density measurement in compact, drainable design. Available in 316L Stainless Steel and C-22 nickel alloy. Options for rupture disk or purge fitting case. Extensive process and meter diagnostics with on-board historian and logging. Broad approvals: CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR, etc. Custody Transfer Approvals: MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil. Fast response rates with unmatched MVD transmitter technology. Smart Meter Verification for real-time measurement integrity. |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 3700 Controller And Transmitter | Remote Field-Mount |
| Key Features | Decrease labor, maintenance, and operating costs with transmitter functions and PLC capabilities. Increase efficiency, accelerate throughput, and improve product quality. Full configuration capabilities eliminate external tools. Large, programmable display with descriptive alarms for easy setup and operation. MVD technology maximizes uptime and process consistency. |
| Output Variables | Mass & volume flow, Net product content / flow, Temperature, Density, Concentration |
| Local Display | Multi-line LCD panel, Backlit LCD, 128 × 128 pixel, Adjustable contrast, Non-glare, chemical-resistant lens, Large push buttons with tactile feedback |
| Power Options | AC: 85 to 265 VAC, 50/60 Hz, 30 VA DC: 18 to 30 VDC, 18 watts typical, 25 watts maximum |
| Input/Output Signals | Two active 4–20 mA, Three discrete outputs, One 2-wire frequency output, One 2-wire frequency input, Two discrete momentary inputs |
| Mounting Options | Remote field-mount |
| Application Types | Batch controller, Custody transfer, Two-phase flow/entrained gas, Meter verification |
| Hazardous Approvals | UL, CSA, ATEX, NEPSI |
