Description
| Brand |
Micro Motion |
|---|

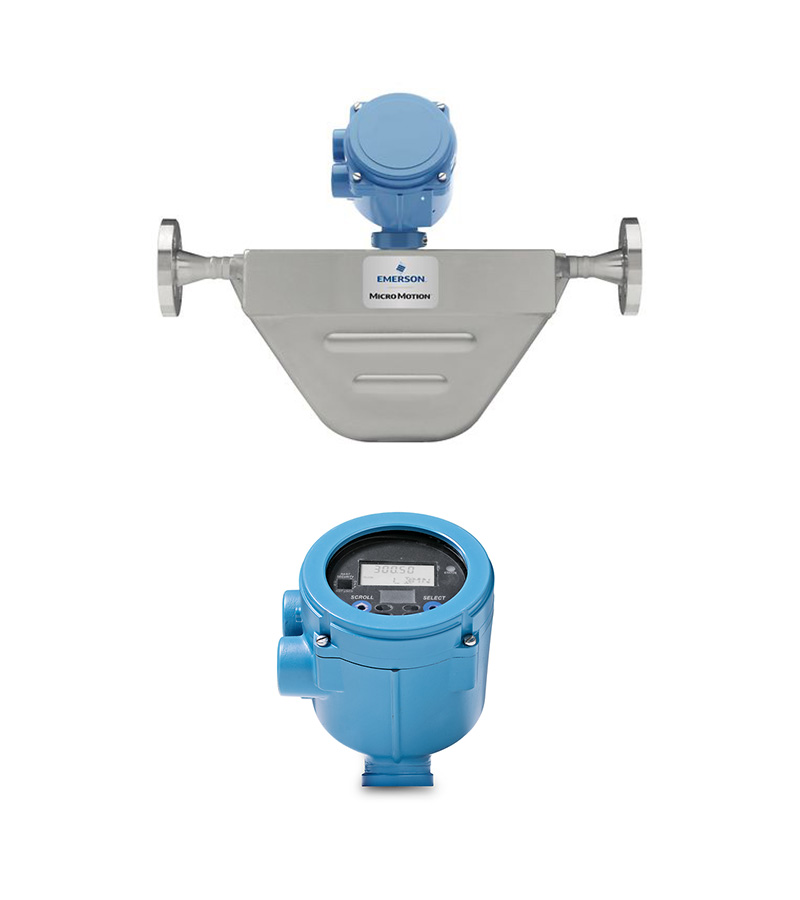

As a supplier, we offer the Micro Motion F-Series Coriolis Meter, consisting of the F050P sensor and the 2400S transmitter, ensuring exceptional flow measurement accuracy and stability. The F050P is made of corrosion-resistant 316L stainless steel, capable of withstanding pressures up to 5000 psig, while the 2400S transmitter features multiple output options and an intuitive display interface. Our robust supply chain and ample inventory enable quick fulfillment of customer needs, complemented by comprehensive technical support and high-quality after-sales service to keep your production line running efficiently. Choose our products for precise measurements and outstanding service.
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 2400S Compact, Integral-Mount Transmitter | |
| Output Variables | Mass & volume flow, net product content/flow, temperature, density, concentration |
| Local Display | Standard user interface with 2-line LCD panel |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage 85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum 18–100 VDC, 4 watts typical, 7 watts maximum |
| Input/Output Signals (Analog Output Option) | Channel A: One active 4–20 mA output (not intrinsically safe) Channel B (configurable): One active or passive frequency output, one active or passive discrete output, one active or passive discrete input |
| Input/Output Signals (PROFIBUS-DP Option) | Digital 2-way PROFIBUS-DP signal |
| Input/Output Signals (DeviceNet Option) | Digital 2-way DeviceNet signal (Now Obsolete) |
| HART | Bell 202 signal is superimposed on the primary milliamp output HART communication is not available on PROFIBUS-DP and DeviceNet transmitter versions |
| Mounting Options | Field mount, integral with sensor |
| Application Types | Continuous process control, two-phase flow/entrained gas, meter verification |
| Hazardous Approvals | C1D2, Zone 2 |
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Key Features | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design. Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes. Available with a rupture disk or purge fitting case. Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging. Broad range of meter approvals and certifications, including CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR. Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil. Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology. Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters. |
| Micro Motion 2400S Compact, Integral-Mount Transmitter | |
| Key Features | Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing. Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. Employ the best two-phase flow capability for batching, loading, and entrained gas applications. Eliminate the need to remove the transmitter cover with optical buttons on the display. Rely on Class 1, Div. 2 (Zone 2) hazardous area approval (sensor and transmitter). |
