Description
| Brand |
Micro Motion |
|---|

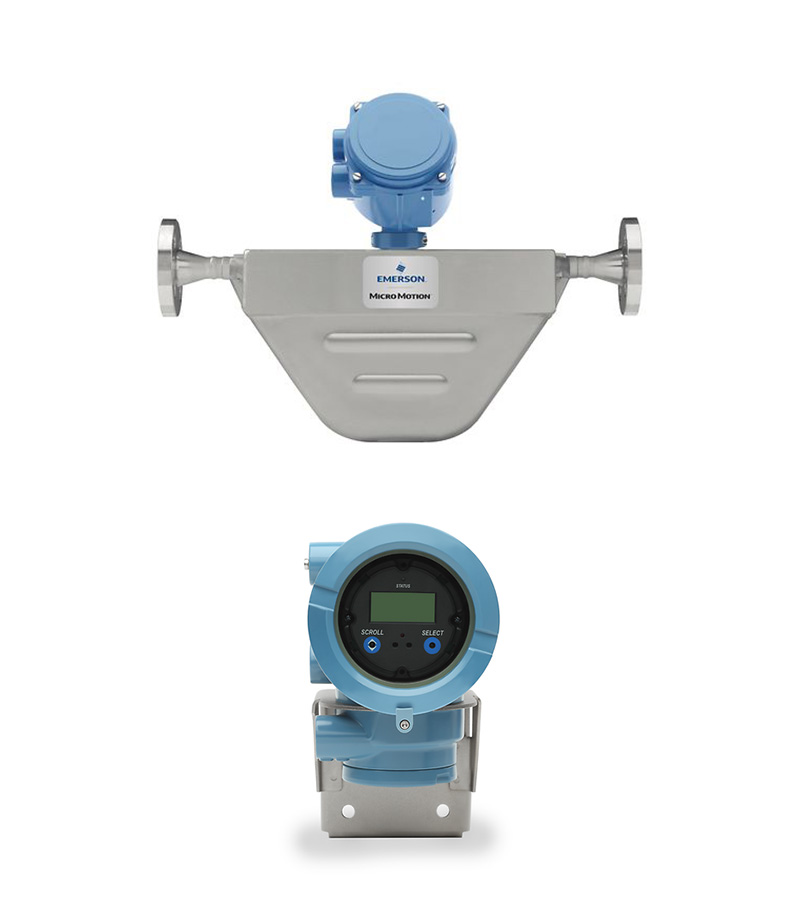

As a supplier, the Micro Motion F-Series Coriolis Meter, consisting of the F050P sensor and the 1700 transmitter, offers exceptional quality and reliability. The F050P sensor, made from 316L stainless steel, features high pressure capability and outstanding mass flow accuracy, ensuring precise measurements for both liquids and gases. The 1700 transmitter boasts powerful diagnostics, supporting both field and remote installations, simplifying configuration, and reducing wiring costs. We provide comprehensive after-sales service and technical support to ensure customers can maximize the benefits of this high-performance solution, enhancing production efficiency. By choosing our F-Series products, you gain top-notch measurement precision and reliability to drive your business success.
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Max Working Pressure | 5,000 psig (344 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 1700 Single Variable Field Mount Flow Transmitter | |
| Output Variables | Mass flow, Volume flow |
| Local Display | Standard user interface with 2-line LCD panel |
| Optical Switches | Two optical switches for local operation |
| Power Supply | Self-switching AC/DC input, 85 to 265 VAC, 18 to 100 VDC, 6 watts typical, 11 watts maximum |
| Input/Output Signals | One active 4–20 mA output, One active frequency output |
| Mounting Options | Field-mount, integrally mounted to a Micro Motion sensor, Remotely mounted to any 4-wire or 9-wire Micro Motion sensor |
| Application Types | Continuous process control, Two-phase flow/entrained gas, Meter verification |
| Hazardous Approvals | Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2 |
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Measurement Capability | Highly accurate mass volume flow and density measurement with a compact, drainable design |
| Material Options | Choose from 316L Stainless Steel and C-22 nickel alloy |
| Configuration Options | Available with a rupture disk or purge fitting case |
| Diagnostics | Extensive process and meter diagnostics with on-board historian and logging |
| Approvals and Certifications | Broad range including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Custody Transfer Approvals | From MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil |
| Response Rates | Fast response rates and accurate batch and process measurement with MVD technology |
| Integrity Assurance | Real-time and in-process measurement integrity with Smart Meter Verification |
| Micro Motion 1700 Single Variable Field Mount Flow Transmitter | |
| Mounting Flexibility | Integral or remote mounting options |
| Diagnostics | Performance diagnostics for entrained gas and batching |
| Installation | Lower wiring costs, easy and quick installation |
| Functionality | Concentration and net flow measurement without additional instruments |
| Safety Certifications | Custody-transfer approval for SIL2 and SIL3 |
| Wireless Access | Access diagnostics and process information with WirelessHART™ |
| Housing | Rugged Class I, Division 1 / Zone 1 housing with optional local operator interface |
