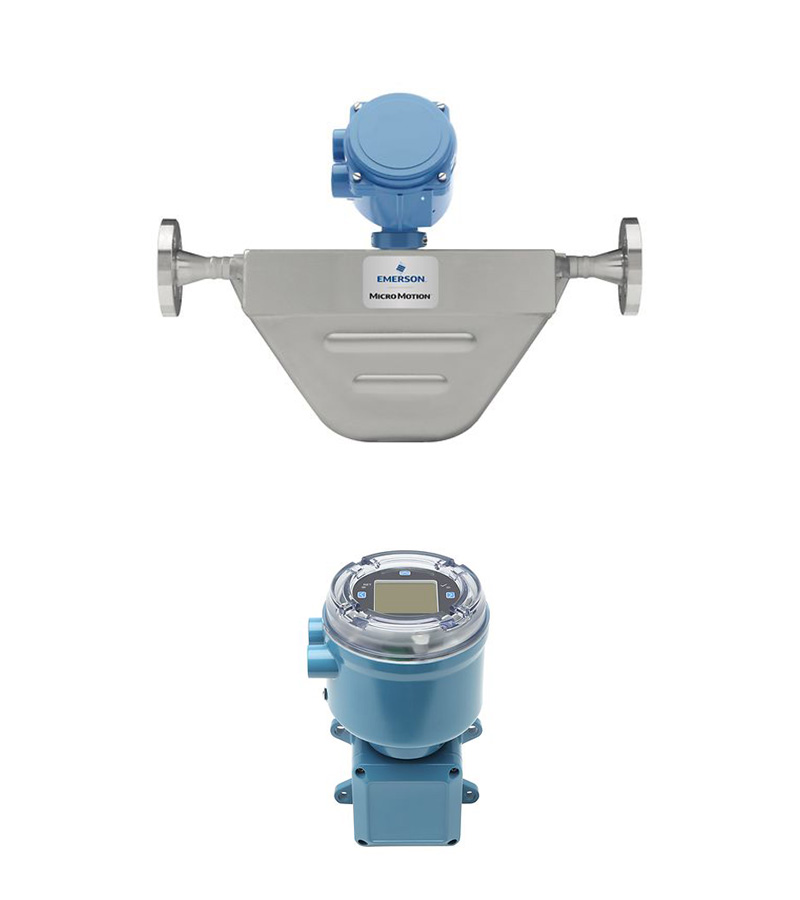

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 1600 Transmitter

We offer the Micro Motion F-Series Coriolis Meter, including the F050P sensor and the 1600 transmitter. The F050P sensor is made of 316L stainless steel, enabling precise flow measurement in high-pressure environments, and is designed for easy cleaning. The 1600 transmitter features a graphical backlit display and Power over Ethernet, simplifying installation and monitoring while providing a data historian to optimize decision-making. By choosing us, you will receive competitive pricing, outstanding customer service, and fast delivery, ensuring efficient production and business growth.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 5,000 psig (344 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX,
Ingress Protection, EMC effects
Specification
Micro Motion 1600 Compact Transmitter
Display/Interface Graphical backlit display, Four-button mechanical controls
Power Supply Power over Ethernet available, 18 to 100 VDC, 6 watts typical,
85 to 240 VAC, 3.5 watts typical
Universal Service Port Allows configuration and transfer of data using a standard USB-C terminal
Mounting Options Field-mount aluminum and hygienic stainless steel housing,
Integrally mounted to various Micro Motion sensors
Application Types Smart Meter Verification, Discrete batch control,
Concentration measurement, Advanced Phase Measurement
Hazardous Approvals Class I, Div. 2, Zone 2
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Measurement Capability Highly accurate mass volume flow and density measurement
Material Options 316L Stainless Steel and C-22 nickel alloy
Features Available with a rupture disk or purge fitting case,
Extensive process and meter diagnostics
Certifications CSA, ATEX, IECEx,
Ingress Protection 66/67, NAMUR
Response Rate Fastest response rates with MVD transmitter technology
Smart Meter Verification Real-time measurement integrity assurance
3D Model Interaction Learn more about F-Series Coriolis Meters
Micro Motion™ 1600 Compact Transmitter
Installation Ease Integration with Ethernet/IP and Power Over Ethernet (PoE)
Data Historian Captures insights on process events and fluid quality
Smart Meter Verification Check meter health in under 90 seconds
Software Features Licensable features for Concentration Measurement and Advanced Phase Measurement
Graphic Display Supports 8 languages with software rotation
