Description
| Brand |
Micro Motion |
|---|

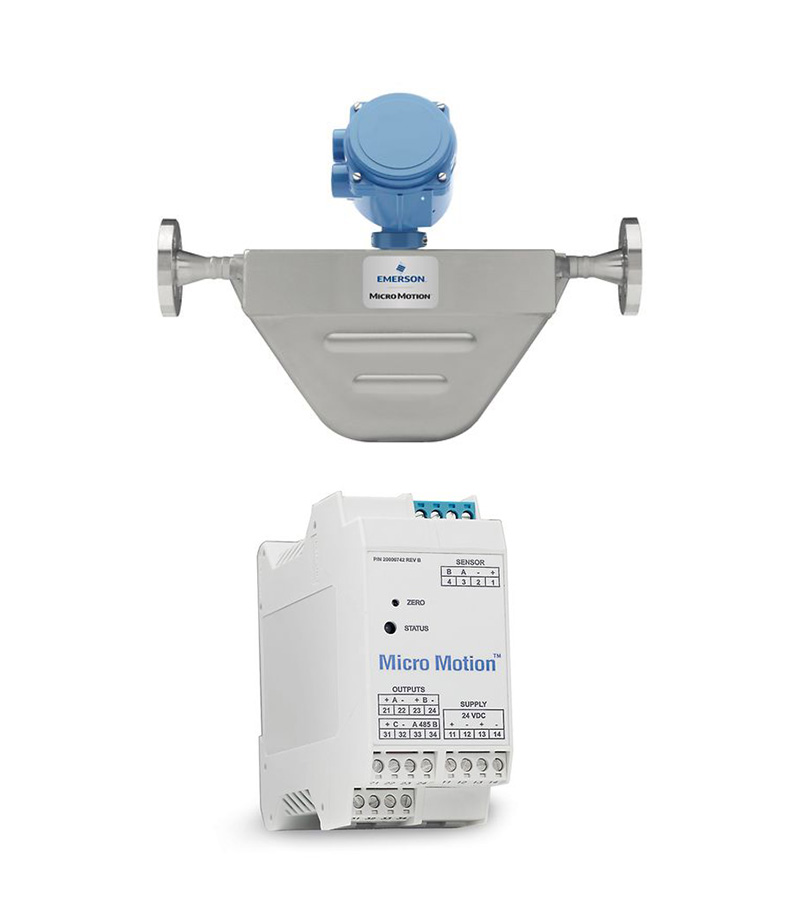

As a supplier of high-quality flow meters, we are proud to offer the Micro Motion F-Series Coriolis Meter, which includes the F050P sensor and the 1500 control room single variable transmitter. The F050P sensor, made of 316L stainless steel, delivers exceptional accuracy for both liquid and gas mass flow measurements and is suitable for high-pressure environments. Its compact and drainable design makes it ideal for a variety of applications. The 1500 transmitter features remote mounting options, simplifies configuration, and ensures real-time performance diagnostics with Smart Meter Verification, guaranteeing stable and efficient processes. We are committed to providing excellent customer support and technical services to help you enhance production efficiency and ensure measurement reliability.
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 1500 Compact Control Room Single Variable Flow Transmitter | |
| Available Outputs | Model 1500: One flow rate variable (in milliamp and frequency/pulse output) Model 2500: Simultaneous monitoring of multiple flow variables |
| Housing | Polyamide PA 6.6 |
| Power | Minimum 19.2 to 28.8 VDC, 6.3 watts, Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements |
| Input/Output Signals | One active 4–20 mA output, One active frequency output, HART Bell 202 signal superimposed on the primary milliamp output |
| Mounting Options | Remote-mount control room only, mounted on 35 mm rail (rail must be grounded) |
| Application Types | Continuous process control, Two-phase flow/entrained gas, Filling & dosing, Meter verification |
| Hazardous Approvals | Suitable for non-hazardous environments only |
| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Accuracy | Highly accurate mass volume flow and density measurement in a compact design |
| Material Options | Available in 316L Stainless Steel and C-22 nickel alloy |
| Features | Available with a rupture disk or purge fitting case |
| Diagnostics | Extensive process and meter diagnostics with on-board historian and logging |
| Certifications | CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Custody Transfer Approvals | MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil |
| Response Rates | Fast response rates with unmatched MVD transmitter technology |
| Verification | Smart Meter Verification for real-time measurement integrity assurance |
| Micro Motion 1500 Compact Control Room Single Variable Flow Transmitter | |
| Wiring | Remote-mount transmitter using 35 mm DIN rail |
| Space Requirement | 0.03 ft³ space requirement, less than typical 1.0 ft³ for Coriolis transmitters |
| Configuration | Four-wire connection to sensors for power and signal |
| Performance Diagnostics | Diagnose performance under entrained gas and batching with MVD digital processing |
| Measurement Integrity | Smart Meter Verification for real-time measurement assurance |
