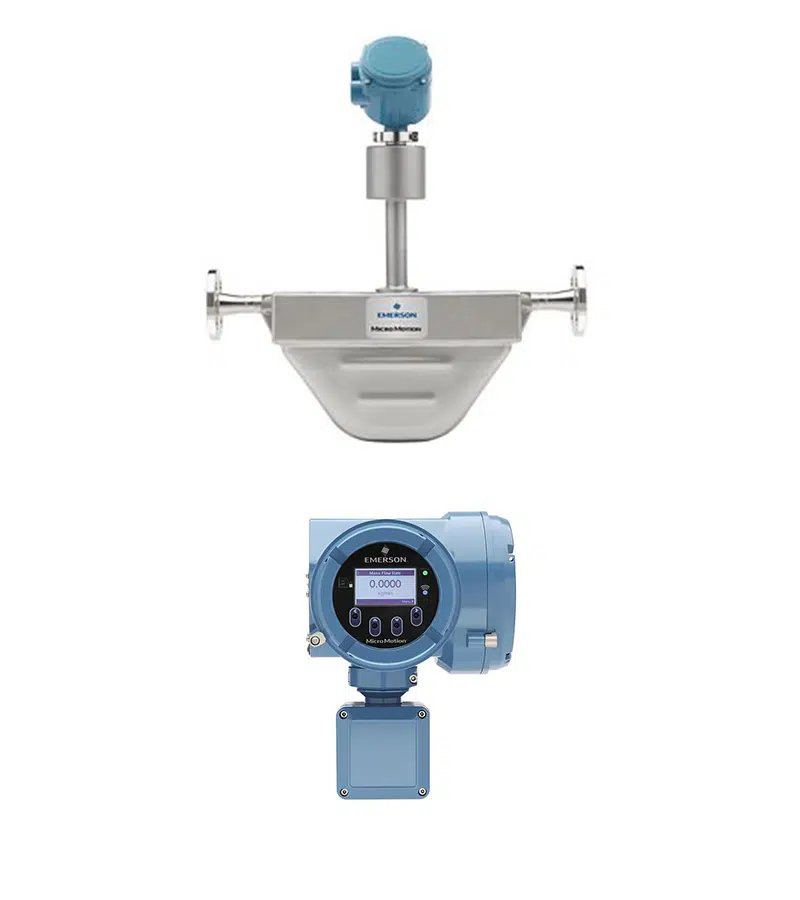

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 5700 Transmitter
1/1

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 5700 Transmitter

The Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and the 5700 transmitter, is the ideal choice for high-precision flow and density measurement. The F050A sensor is made from 316L stainless steel or C-22 nickel alloy, ensuring excellent measurement performance and corrosion resistance in various applications. The 5700 transmitter offers flexible installation options and powerful data logging capabilities, supporting up to five configurable I/O channels for real-time monitoring and calibration.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 5700 Field-Mount Transmitter Graphical backlit display, Four-button optical controls
Power 85 to 240 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
Universal Service Port Design allows connection and data transfer using standard equipment
Configurable I/O Version Up to 5 licensable channels with various configurations
Communication Protocol Supports WirelessHART, FOUNDATION Fieldbus, and PROFIBUS-PA versions
Mounting Options Field-mount aluminum and stainless steel housing
Application Types Smart Meter Verification, Discrete batch control, Petroleum measurement
Hazardous Approvals Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2, SIL/SIS Certification
Micro Motion F050A Coriolis Meter Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design
Material Options Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Approvals and Certifications Broad range including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Custody Transfer Approvals MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil
Response Rates Fastest response rates with unmatched MVD transmitter technology
Measurement Integrity Real-time measurement integrity assurance with Smart Meter Verification
3D Model Interaction Interact with our 3D model to learn more about F-Series meters
Micro Motion 5700 Field-Mount Transmitter Perform fast, flexible installations with native Ethernet architecture
Application Suitability Best response in challenging applications like meter proving, filling, dosing, and batching
Data Historian Capture insights about process events, fluid quality, and measurement stability
Configurable I/O Monitor up to 5 fully configurable I/O channels
Meter Health Check Check health in under 90 seconds with Smart Meter Verification
Calibration Confirmation Easily confirm calibration with zero verification
Process Control Improve control with real-time indication of multi-phase flow events
Installation Minimize time and expertise needed to install and operate the flow meter
