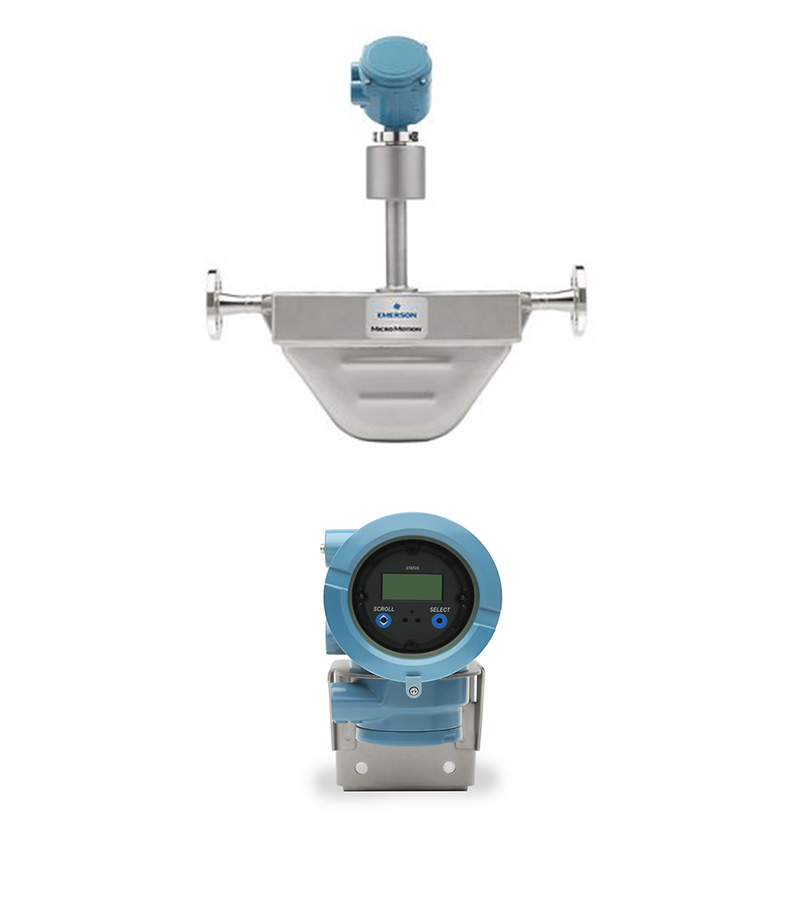

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2700 Transmitter
1/1

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2700 Transmitter

As a supplier, our Micro Motion F-Series Coriolis Meter, combining the F050A sensor and 2700 transmitter, ensures exceptional quality and reliability. The F050A sensor, made of 316L stainless steel, can withstand high temperatures and pressures, providing high-precision mass and volume flow measurements even in harsh environments. The 2700 transmitter features flexible mounting options and comprehensive diagnostic capabilities, allowing for real-time monitoring and process optimization.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 2700 Multivariable Transmitter Field and Integral-Mount
Output Variables Mass & volume flow, Net product content/flow, Temperature, Density, Concentration
Local Display Standard user interface with 2-line LCD panel
Power Self-switching AC/DC input, 85 to 265 VAC or 18 to 100 VDC
Input/Output Signals One active 4–20 mA output; configurable frequency or discrete outputs
Mounting Options Field-mount; Integrally mounted or remotely mounted to Micro Motion sensors
Application Types Continuous process control, Custody transfer, Two-phase flow, Meter verification
Hazardous Approvals Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Measurement Capability Highly accurate mass volume flow and density measurement in a compact, drainable design
Material Options 316L Stainless Steel and C-22 nickel alloy available in all sizes
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil
Response Rate Fast response rates for accurate batch and process measurement with unmatched MVD technology
Integrity Assurance Real-time and in-process measurement integrity assurance with Smart Meter Verification
3D Model Interaction Interact with our 3D model to learn more about F-Series Coriolis Flow and Density Meters
Micro Motion 2700 Multivariable Transmitter Field and Integral-Mount
Mounting Flexibility Integral or remote mounting options
Diagnostics Performance diagnostics for entrained gas and batching from empty applications with MVD digital processing
Installation Lower wiring costs; easy and quick installation
Concentration Measurement Eliminates the need for additional instruments with concentration and net flow measurement
Safety Approvals Custody-transfer approval and certification for SIL2 and SIL3
Wireless Communication Access additional diagnostics and process information without added wiring costs with WirelessHART™
Housing Rugged Class I, Division 1 / Zone 1 housing with optional local operator interface
