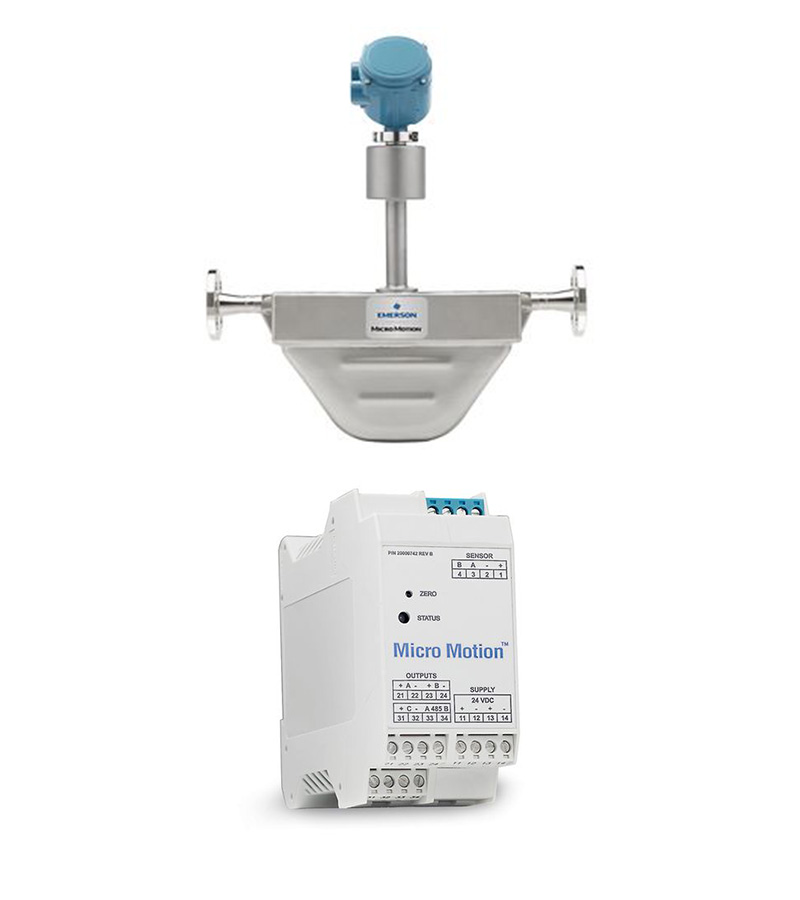

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2500 Transmitter
1/1

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2500 Transmitter

As a supplier of high-quality flow measurement solutions, the Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and 2500 transmitter, offers exceptional quality and performance. The F050A sensor, made from 316L stainless steel, is designed to withstand high temperatures, ensuring accurate flow and density measurements even in harsh environments. The 2500 transmitter features a compact design, saving space in control rooms, and offers flexible installation options for rapid real-time data needs.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 2500 Compact Transmitter Control Room Multivariable Flow And Density Transmitter
Output Variables Mass & volume flow, Net product content/flow, Temperature, Density, Concentration
Local Display None
Power Minimum 19.2 to 28.8 VDC, 6.3 watts
Input/Output Signals One active 4–20 mA output, One active frequency output
Mounting Options Mounted on 35 mm rail; rail must be grounded
Application Types Continuous process control, Two-phase flow/entrained gas, Meter verification
Hazardous Approvals Suitable for non-hazardous environments only
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Measurement Capability Highly accurate mass volume flow and density measurement in compact, drainable design
Material Options 316L Stainless Steel and C-22 nickel alloy in all sizes
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR, Custody Transfer Approvals from MID OIML R 117
Response Rates Fastest response rates and accurate batch and process measurement with unmatched MVD technology
Measurement Integrity Real-time and in-process measurement integrity assurance with Smart Meter Verification
3D Model Interaction Interact with our 3D model to learn more about F-Series Coriolis Flow and Density Meters
Micro Motion 2500 Compact Transmitter Control Room Multivariable Flow And Density Transmitter
Wiring Cost Savings Cut wiring expenses with remote-mount transmitter using 35 mm DIN rail
Space Requirement 0.03ft³ space requirement versus 1.0ft³ typically required for Coriolis transmitters
Configuration Simplify configuration with a four-wire connection to sensors for power and signal
Performance Diagnosis Diagnose performance under entrained gas and batching from empty applications with MVD digital processing
Measurement Integrity Real-time and in-process measurement integrity assurance with Smart Meter Verification
