micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 1700 Transmitter
1/1

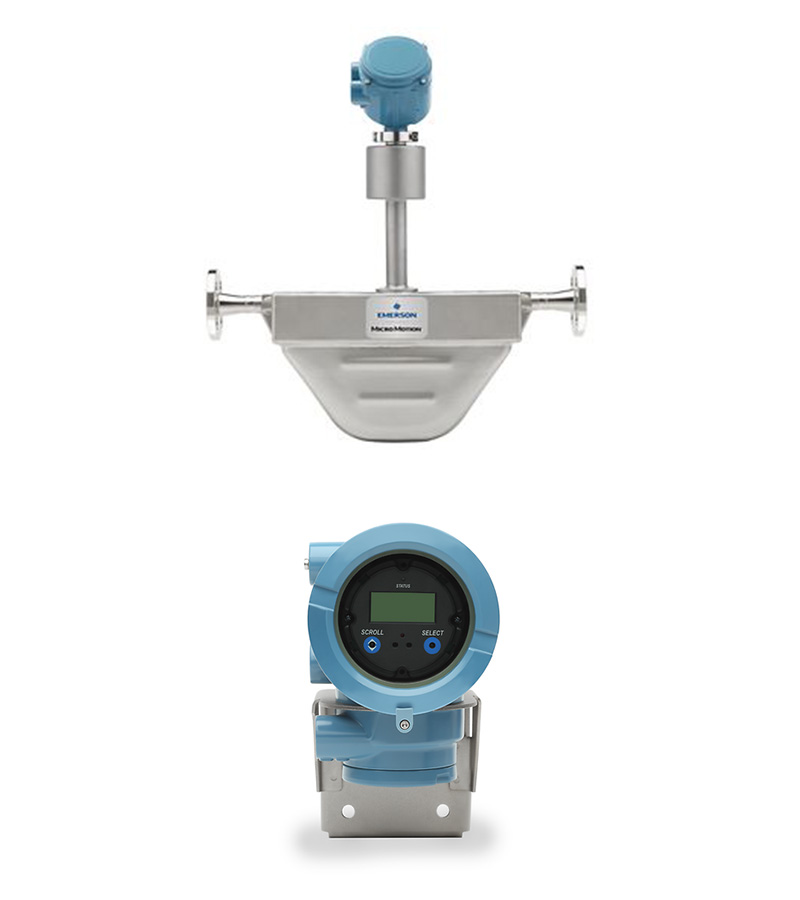

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 1700 Transmitter

We offer the Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and the 1700 transmitter, ensuring exceptional measurement accuracy and reliability. With our strong supply chain, we guarantee timely delivery and efficient service, complemented by comprehensive after-sales support to help you meet various demands. Our competitive pricing will also assist you in optimizing costs and enhancing business efficiency. Choose us, and you’ll experience unparalleled product value and service quality.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 1700 Flow Transmitter Single Variable Field Mount
Output Variables Mass flow, Volume flow
Local Display Standard user interface with 2-line LCD panel
Power 85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
Input/Output Signals One active 4–20 mA output, One active frequency output
Mounting Options Field-mount, Integrally mounted to Micro Motion sensors
Application Types Continuous process control, Two-phase flow/entrained gas, Meter verification
Hazardous Approvals Class I, Div. 1, Class I, Div. 2, Zone 1, Zone 2
Micro Motion F050A Coriolis Meter
Design Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design.
Material Options Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes.
Diagnostics Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging.
Certifications Broad range of meter approvals, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Custody Transfer Approvals Approvals from MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil.
Response Rates Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology.
Measurement Integrity Gain real-time and in-process measurement integrity assurance with Smart Meter Verification.
3D Model Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters.
Micro Motion 1700 Flow Transmitter
Mounting Flexibility Maximize flexibility with integral or remote mounting.
Diagnostics Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing.
Installation Lower wiring costs and install easily and quickly.
Concentration Measurement Eliminate the need for additional instruments with concentration and net flow measurement.
Safety Approvals Rely on custody-transfer approval and certification for SIL2 and SIL3.
WirelessHART™ Gain access to additional diagnostics and process information without added wiring costs.
Housing Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface.
