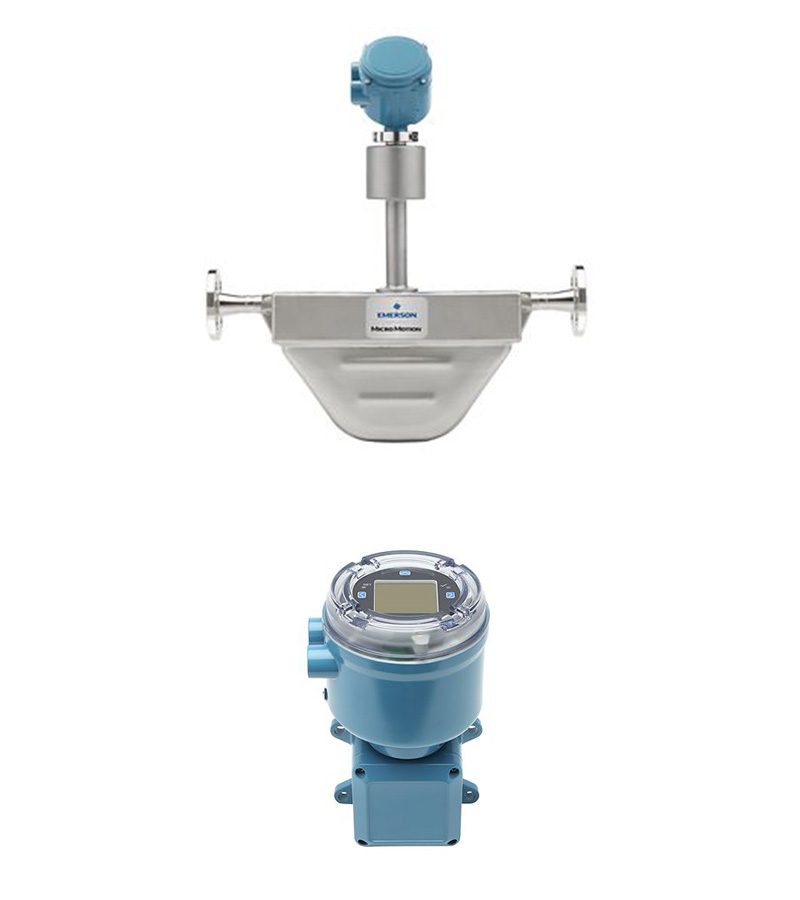

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 1600 Transmitter

As a supplier of high-quality flow measurement equipment, the Micro Motion F-Series Coriolis Meter combines the F050A sensor and 1600 transmitter to deliver exceptional performance and reliability. The F050A sensor, made of 316L stainless steel, is designed for high-temperature and high-pressure environments, ensuring accurate measurement of both liquids and gases. The 1600 transmitter features a graphical backlit display and intelligent diagnostic capabilities for real-time monitoring of instrument status.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion™ 1600 Compact Transmitter Graphical backlit display, Four-button mechanical controls
Power Supply Power over Ethernet available, 18 to 100 VDC, 6 watts typical, 11 watts maximum
Universal Service Port Design allows configuration and data transfer using USB-C terminal
Ethernet Version Supports EtherNet/IP and Modbus TCP
HART® Version Supports full HART® communication
Mounting Field-mount aluminum and hygienic stainless steel options
Application Types Smart Meter Verification, Discrete batch control, Petroleum measurement
Hazardous Approvals Class I, Div. 2, Zone 2
Micro Motion F050A Coriolis Meter Achieve highly accurate mass volume flow and density measurement in a compact, drainable design.
Material Options Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes.
Diagnostics Extensive process and meter diagnostics with on-board historian and logging.
Certifications Broad range of approvals including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Custody Transfer Approvals Approved by MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil.
Response Rates Fast response rates with unmatched MVD transmitter technology for accurate measurement.
Measurement Integrity Real-time measurement integrity assurance with Smart Meter Verification.
3D Model Interaction Interact with our 3D model to learn more about F-Series Coriolis Meters.
Micro Motion™ 1600 Compact Transmitter Ease of installation, integration, and remote monitoring with Ethernet/IP and PoE capabilities.
Data Historian Capture insights about process events, fluid quality, and measurement stability.
Meter Health Check Check meter health in fewer than 90 seconds with Smart Meter Verification.
Software Features Ensure quality with features like Concentration Measurement and Advanced Phase Measurement.
Graphic Display Supports 8 languages and can be rotated using integrated software.
