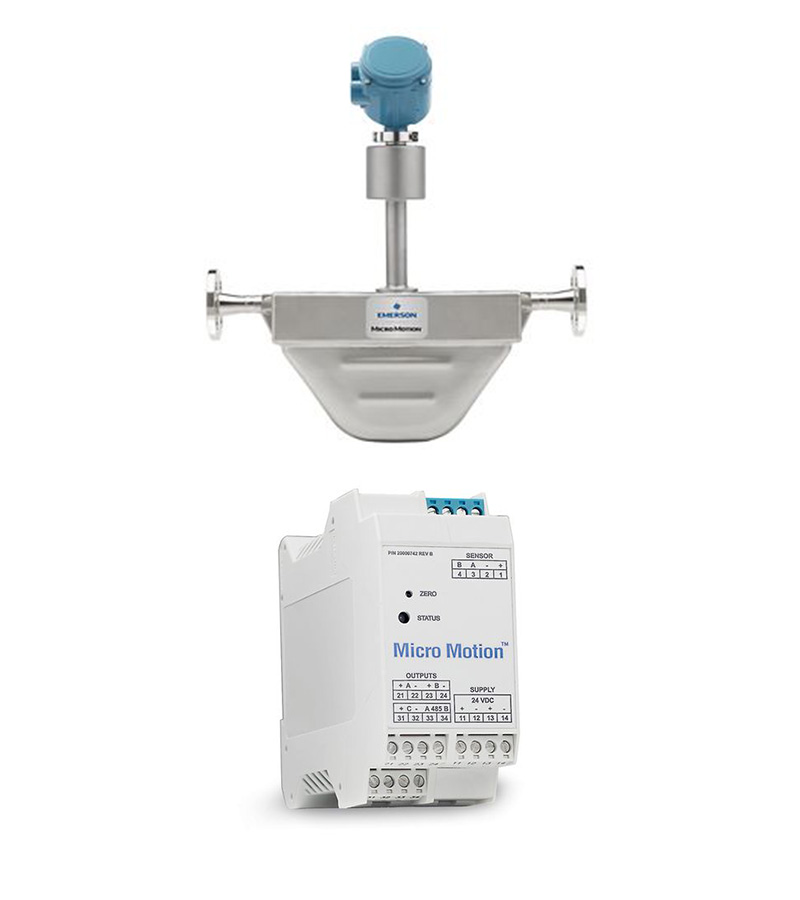

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 1500 Transmitter
1/1

micro motion coriolis,Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 1500 Transmitter

As a supplier of high-quality flow meters, we recommend the Micro Motion F-Series Coriolis Meter, which combines the F050A sensor and the 1500 transmitter to deliver exceptional measurement accuracy and reliability. The F050A sensor is designed for high-temperature environments, ensuring precise flow measurement under demanding conditions. The 1500 transmitter is easy to install remotely and is suitable for continuous process control and two-phase flow applications.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 1500 Transmitter Compact Control Room Single Variable Flow Transmitter
Available Outputs Model 1500: One flow rate variable (milliamp and frequency/pulse output)
Housing Polyamide PA 6.6
Power 19.2 to 28.8 VDC, 6.3 watts
Input/Output Signals One active 4–20 mA output, One active frequency output
Mounting Options Remote-mount control room only, Mounted on 35 mm rail
Application Types Continuous process control, Two-phase flow/entrained gas, Filling & dosing, Meter verification
Hazardous Approvals Suitable for non-hazardous environments only
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Measurement Capability Highly accurate mass volume flow and density measurement with compact, drainable design
Material Options Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Custody Transfer Approvals MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil
Response Rates Fast response rates and accurate batch and process measurement with unmatched MVD technology
Measurement Integrity Real-time and in-process measurement integrity assurance with Smart Meter Verification
3D Model Interaction Interact with 3D model for more information on F-Series Coriolis Flow and Density Meters
Micro Motion 1500 Transmitter Compact Control Room Single Variable Flow Transmitter
Wiring Expenses Cut wiring expenses with remote-mount transmitter using 35 mm DIN rail
Space Requirement Only 0.03ft³ space required versus 1.0ft³ typically needed for Coriolis transmitters
Configuration Simplified configuration with a four-wire connection to sensors for power and signal
Performance Diagnosis Diagnose performance under entrained gas and batching from empty applications with MVD digital processing
Measurement Integrity Real-time and in-process measurement integrity assurance with Smart Meter Verification
