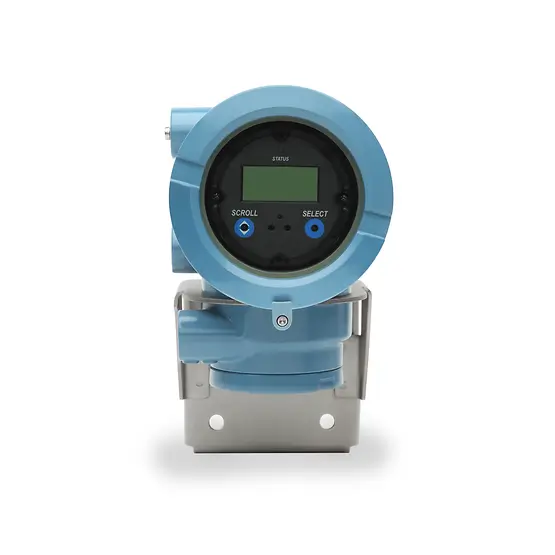

micro motion coriolis,Micro Motion 2700 Multivariable Flow And Density Transmitter | Emerson 2700 Transmitter
1/3

micro motion coriolis,Micro Motion 2700 Multivariable Flow And Density Transmitter | Emerson 2700 Transmitter

he Micro Motion 2700 is a high-performance mass flow meter designed for industrial applications. Utilizing advanced Coriolis technology, it delivers precise measurements of mass flow, volume flow, and density for a variety of liquids and gases. Its robust construction ensures durability in harsh environments, while features like real-time data transmission enhance operational efficiency. The 2700 is an ideal choice for businesses looking for reliable and accurate flow measurement solutions.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion
Measurement Type

Flow

Specifications of Micro Motion 2700

Output variables Mass & volume flow
Net product content / flow
Temperature
Density
Concentration
Local display Standard user interface with 2-line LCD panel
Two optical switches for local operation
Glass or plastic lens options
Power Self-switching AC/DC input, automatically recognizes supply voltage
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
Input/output signals Not intrinsically safe
Analog output option:
One active 4–20 mA output
One active frequency output
Frequency output can be configured as a discrete output
Configurable I/O option:
One or two active 4-20 mA outputs
One or two active/passive frequency outputs
One or two active/passive discrete outputs
One discrete input
Intrinsically safe
Analog output option:
One passive 4-20 mA output
One passive frequency output
Frequency output can be configured as a discrete output
Foundation™ fieldbus (Obsolete)
optionally non-incendive
One Foundation fieldbus H1 output
PROFIBUS-PA (Obsolete)
One PROFIBUS-PA output
HART/WirelessHART
Bell 202 signal is superimposed on the primary milliamp output
WirelessHART available via THUM adapter
HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions
Mounting options Field-mount
Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Application types Continuous process control
Custody transfer
Two-phase flow/entrained gas
Meter verification
SIS Certified
Hazardous approvals Class I, Div. 1
Class I, Div. 2
Zone 1
Zone 2


Features

  • Maximize flexibility with integral or remote mounting
  • Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing
  • Lower wiring costs and install easily and quickly
  • Eliminate the need for additional instruments with concentration and net flow measurement
  • Rely on custody-transfer approval and certification for SIL2 and SIL3
  • Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
  • Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™
  • Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
