micro motion coriolis,Micro Motion 1700 Flow Transmitter | Emerson 1700 Transmitter

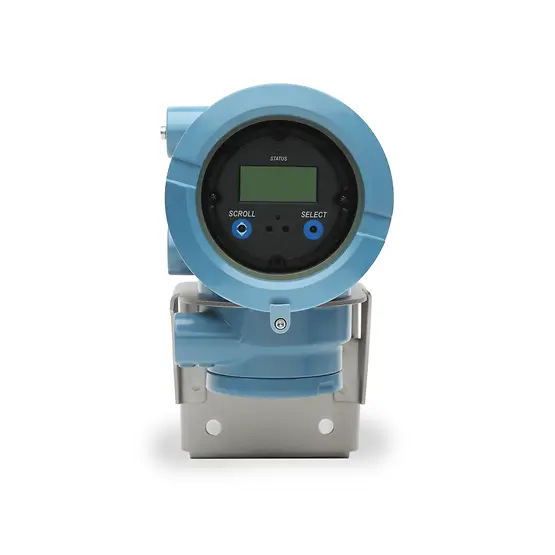

The Micro Motion 1700 Transmitter is a compact and efficient device designed for use with Micro Motion Coriolis flow meters. It offers reliable mass flow measurement and is equipped with a user-friendly interface, including a two-line LCD display and optical switches for easy operation.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion
Measurement Type

Flow

Specifications of Micro Motion 1700

Output variables Mass flow
Volume flow
Local display Standard user interface with 2-line LCD panel
Two optical switches for local operation
Glass or plastic lens options
Power Self-switching AC/DC input, automatically recognizes supply voltage
85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
Input/output signals One active 4–20 mA output
One active frequency output
Frequency output can be configured as a discrete output
HART
Bell 202 signal is superimposed on the primary milliamp output
Mounting options Field-mount
Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Application types Continuous process control
Two-phase flow/entrained gas
Meter verification
SIS Certified
Hazardous approvals Class I, Div. 1
Class I, Div. 2
Zone 1
Zone 2
