Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|

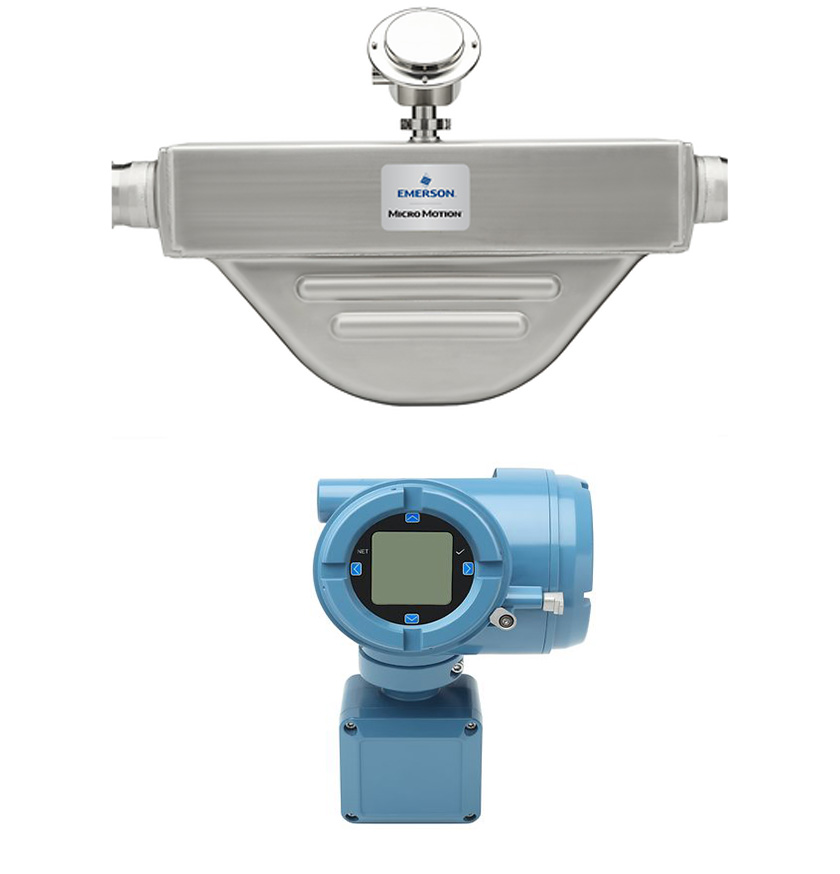

| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Mass Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Mass Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Volume Flow Accuracy (Liquid) | Up to ±0.05% of rate |
| Volume Flow Repeatability (Liquid) | Up to ±0.025% of rate |
| Mass Flow Accuracy (Gas) | Up to ±0.35% of rate |
| Mass Flow Repeatability (Gas) | Up to ±0.175% of rate |
| Density Accuracy (Liquid) | Up to ±0.0005 g/cm³ (±0.5 kg/m³) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 1,450 psig (100 barg) |
| Micro Motion™ 4700 Coriolis Configurable Inputs and Outputs Transmitter | |
| Environmental Specifications | Operating: -61 °F (-52.0 °C) to 149 °F (65.0 °C) Storage: -61 °F (-52.0 °C) to 185 °F (85.0 °C) |
| Vibration Limits | Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g. |
| Housing | NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel |
| Humidity Range | 5 to 95% relative humidity, non-condensing between -40 °F (-40.0 °C) to 149 °F (65.0 °C) |
| Linearity | 0.015% Span, Span = 16mA |
| Input Signal | Up to 3 pairs of wiring terminals for input/output and digital communications. |
| Power Supply | Universal (self-switching) 18VDC to 100VDC, 85VAC to 250VAC |
| Housing | NEMA 4X (IP66/67) polyurethane-painted cast aluminum |
| Weight | Integral mount version: 6.48 lb (2.939 kg) Remote mount version: 8.21 lb (3.724 kg) |
| Cable Glands | Two 1/2 in –NPT or M20 x1.5 female conduit port |
| Mounting | Available integrally or remotely mounted to various Coriolis sensors |
| Display/Interface | Standard user interface with LCD panel, Bluetooth® display option available |
| Micro Motion H400S Hygienic Coriolis Meter | 4 Inch (DN100), 316L Stainless Steel, 32 RA Finish |
| Minimize Variability | Superior sensitivity in a compact design |
| Product Consistency | Ensure quality with superior density measurement |
| Fast Product Change-Over | Self-draining design and superior temperature stability |
| Material Options | Highly polished 316L stainless steel with surface finish up to 15 Ra |
| Real-Time Measurement Integrity | Smart Meter Verification ensures in-process measurement accuracy |
| Two-Phase Flow Capabilities | Suitable for batching, loading, and entrained air applications |
| Approvals and Certifications | CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR |
| Compliance | Use in SIP, CIP, and sanitary environments with 3-A compliance |
| Micro Motion™ 4700 Coriolis Transmitter | Configurable inputs and outputs for flow measurement applications |
| Compact Design | Saves electrical cost and space on integrated systems |
| Direct Mass Measurement | Improves process control, reducing measurement devices |
| Smart Meter Verification | Confidence in meter performance and calibration |
| Easy Access to Measurement History | Valuable insights for better troubleshooting and optimization |
| Real-Time Flow Event Indication | Greater process control for multiphase flow |
| High-Accuracy Density Measurement | Reduces waste; embedded historian records process deviations |
| Ease of Installation | Designed to minimize time and expertise required |
| SIL2/3 Capable | Certified per IEC 61508 for single and multiple meters |
| Wireless THUM™ Option | Maximizes installation and operation flexibility |
