Description
| Brand |
Micro Motion |
|---|

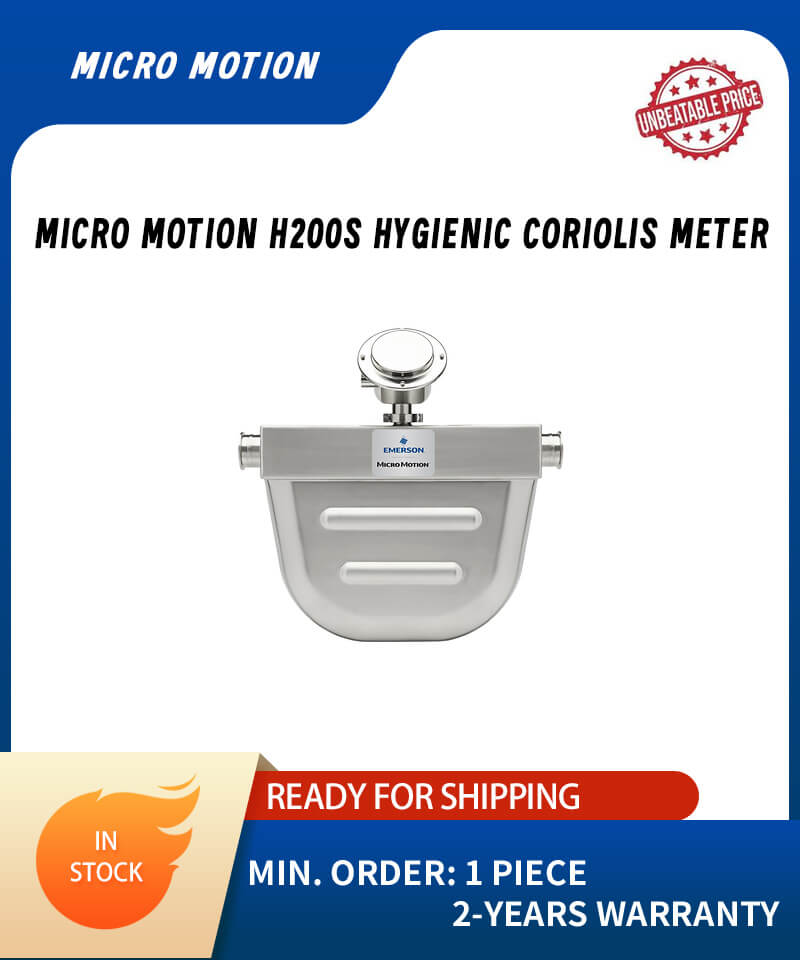

As a B2B supplier, we provide the H200S Hygienic Coriolis Meter, designed with 316L stainless steel and a 32 Ra finish, offering ±0.10% mass flow accuracy and ±0.002 g/cm³ density accuracy. Ideal for SIP, CIP, and hygienic environments, it ensures rapid product changeovers and exceptional performance. We guarantee ample stock, fast delivery, and comprehensive technical support to optimize your operational efficiency.
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • ATEX |
| Feature | Description |
|---|---|
| Minimize Variability | Minimize variability in process control with superior sensitivity in a compact design |
| Ensure Consistency | Ensure product consistency and quality with superior density measurement |
| Fast Change-Over | Enable fast product change-over with self-draining design and superior temperature stability |
| Material Options | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra |
| Real-Time Measurement | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| Two-Phase Flow | Realize superior two-phase flow capabilities for batching, loading, and entrained air applications from compact, hygienic SST transmitter housings |
| Approvals and Certifications | Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Sanitary Compliance | Use in SIP, CIP, and sanitary environments where 3-A and EHEDG compliance is required |
