Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard) ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard) ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard) ±0.001 g/cm³ (±1.0 kg/m³) (optional) ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,015 psig (70 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • ATEX |

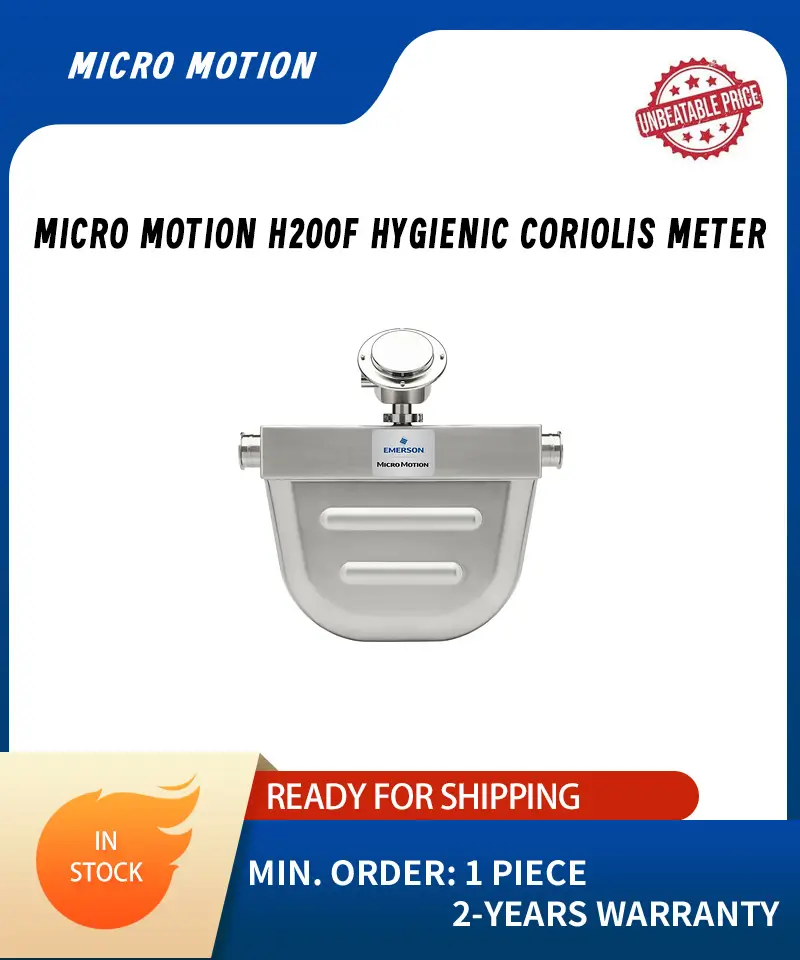

H200F Hygienic Coriolis Meter
As a B2B supplier, we offer the Micro Motion H200F Hygienic Coriolis Meter, designed for high-precision hygienic applications. Constructed with 316L stainless steel and a 15 Ra surface finish, it ensures exceptional measurement reliability and repeatability. Its self-draining design facilitates quick product changeovers and maintains stability across varying temperatures, making it ideal for SIP, CIP, and other hygienic processes. Choose us for ample stock, fast delivery, competitive pricing, and comprehensive technical support to efficienly meet your operational needs.
| Feature | Description |
|---|---|
| Minimize variability in process control | Minimize variability in process control with superior sensitivity in a compact design |
| Ensure product consistency | Ensure product consistency and quality with superior density measurement |
| Enable fast product change-over | Enable fast product change-over with self-draining design and superior temperature stability |
| Material Options | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| Two-phase flow capabilities | Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings |
| Approvals and Certifications | Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Usage | Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required |
