Description
| Brand |
Micro Motion |
|---|
| Specification | Details |
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional), ±0.0005 g/cm³ (±0.5 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,015 psig (70 barg) |
| Meter approvals, calibrations, and certifications | CSA, IECEx, ATEX |

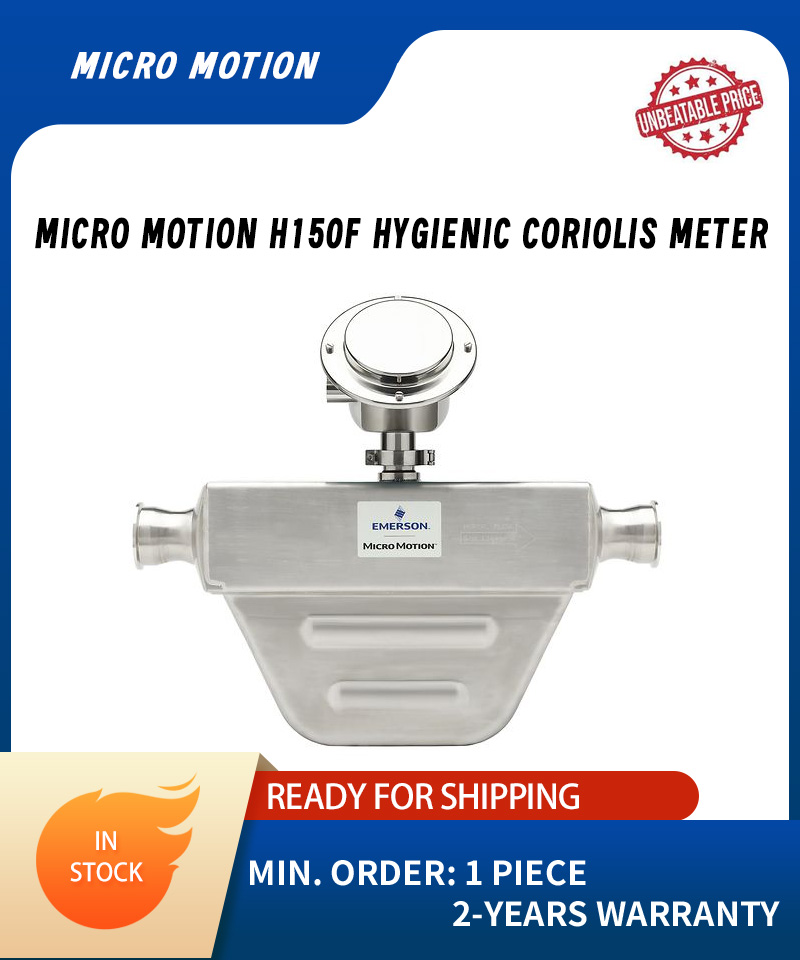

As a B2B supplier, we offer the Micro Motion H150F Hygienic Coriolis Meter, crafted from 316L stainless steel with a 15 Ra finish, ideal for high-precision hygienic applications. Our robust supply chain ensures quick delivery to meet your operational needs. With Smart Meter Verification, you gain real-time accuracy monitoring, enhancing efficiency and reliability in your processes. Partner with us for superior products and exceptional service.
| Features | Details |
| Minimize variability | Minimize variability in process control with superior sensitivity in a compact design |
| Ensure consistency | Ensure product consistency and quality with superior density measurement |
| Enable fast change-over | Enable fast product change-over with self-draining design and superior temperature stability |
| Choose options | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra |
| Smart Meter Verification | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| Two-phase flow capabilities | Realize superior two-phase flow capabilities for batching, loading and entrained air applications |
| Approvals and certifications | Broad range of meter approvals and certifications, including; CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Usage environment | Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required |
