Description
| Brand |
Micro Motion |
|---|
| Specifications | Details |
| Mass flow accuracy (Liquid) | ±0.15% of rate (standard), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.05% of rate |
| Volume flow accuracy (Liquid) | ±0.25% of rate (standard), ±0.15% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.05% of rate |
| Mass flow accuracy (Gas) | ±0.50% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (±2.0 kg/m³) (standard), ±0.001 g/cm³ (±1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,015 psig (70 barg) |
| Meter approvals, calibrations, and certifications | • CSA • IECEx • ATEX |

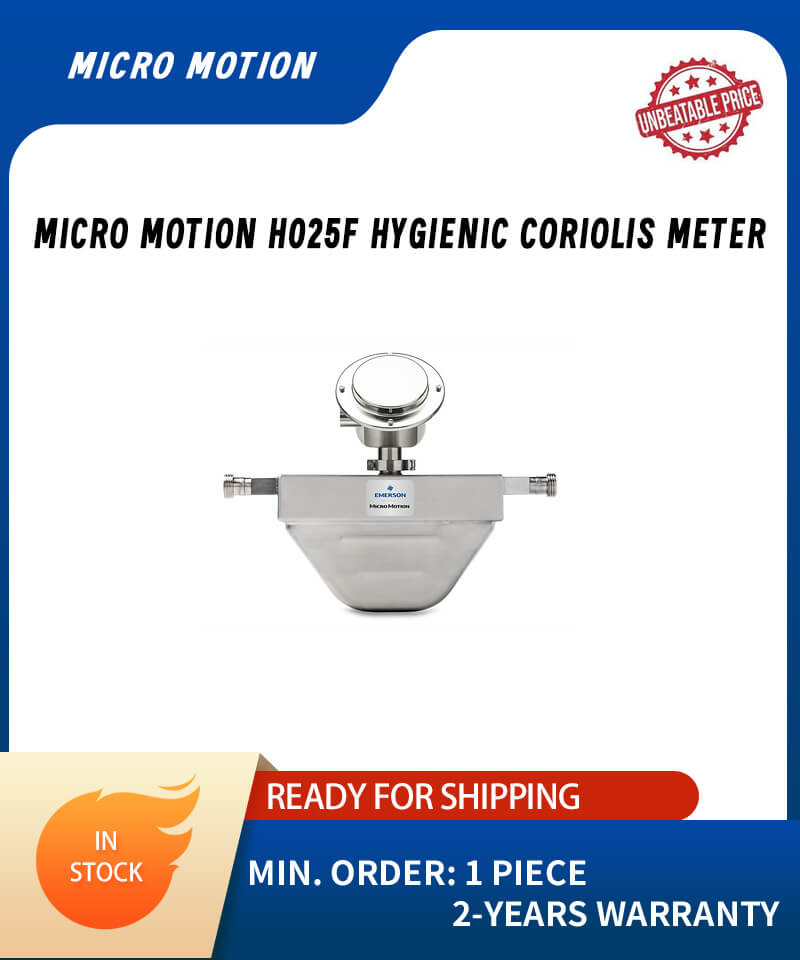

H025F Hygienic Coriolis Meter
As a B2B supplier, we offer the Micro Motion H025F Hygienic Coriolis Meter, crafted from 316L stainless steel with a 15 Ra finish, ideal for hygienic applications. Our strong supply chain ensures ample stock and fast delivery, while our dedicated technical support enhances your operations with reliable measurements. Trust us for your sanitary needs and experience excellence in every aspect.
| Features | Details |
| Minimize variability | Minimize variability in process control with superior sensitivity in a compact design. |
| Product consistency | Ensure product consistency and quality with superior density measurement. |
| Fast change-over | Enable fast product change-over with self-draining design and superior temperature stability. |
| Material options | Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra. |
| Smart Meter Verification | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification. |
| Two-phase flow capabilities | Realize superior two-phase flow capabilities for batching, loading, and entrained air applications from compact, hygienic SST transmitter housings. |
| Certifications | Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR. |
| Usage environments | Use in SIP, CIP, and sanitary environments where 3-A and EHEDG compliance is required. |
