micro motion coriolis,Emenson Micro Motion | Micro Motion F050S Coriolis Meter | Coriolis Meter supply chain partner
1/1

micro motion coriolis,Emenson Micro Motion | Micro Motion F050S Coriolis Meter | Coriolis Meter supply chain partner

We recommend the Micro Motion F050S Coriolis Meter, a high-performance flow meter made of 316L stainless steel. It offers a mass flow accuracy of ±0.20% and excellent repeatability, making it ideal for space-constrained applications. With multiple certifications, including UL, CSA, ATEX, and IECEx, it ensures reliability and safety. The built-in diagnostic features and fast-response MVD sensor technology enhance real-time monitoring and efficiency in dynamic applications.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Brand

Micro Motion

As a B2B supplier, the Micro Motion F050S Coriolis Meter offers not only exceptional flow measurement performance but also ensures ample inventory and high-quality after-sales service to help customers operate efficiently.



Specification Details
Mass flow accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass flow repeatability (Liquid) ±0.050% of rate
Volume flow accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume flow repeatability (Liquid) ±0.050% of rate
Mass flow accuracy (Gas) ±0.5% of rate
Mass flow repeatability (Gas) ±0.25% of rate
Density accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional), ±0.0005 g/cm³ (0.5 kg/m³) (optional)
Temperature accuracy ±1 °C ±0.5% of reading
Sensor maximum working pressure 1,450 psig (100 barg)
Meter approvals, calibrations, and certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects

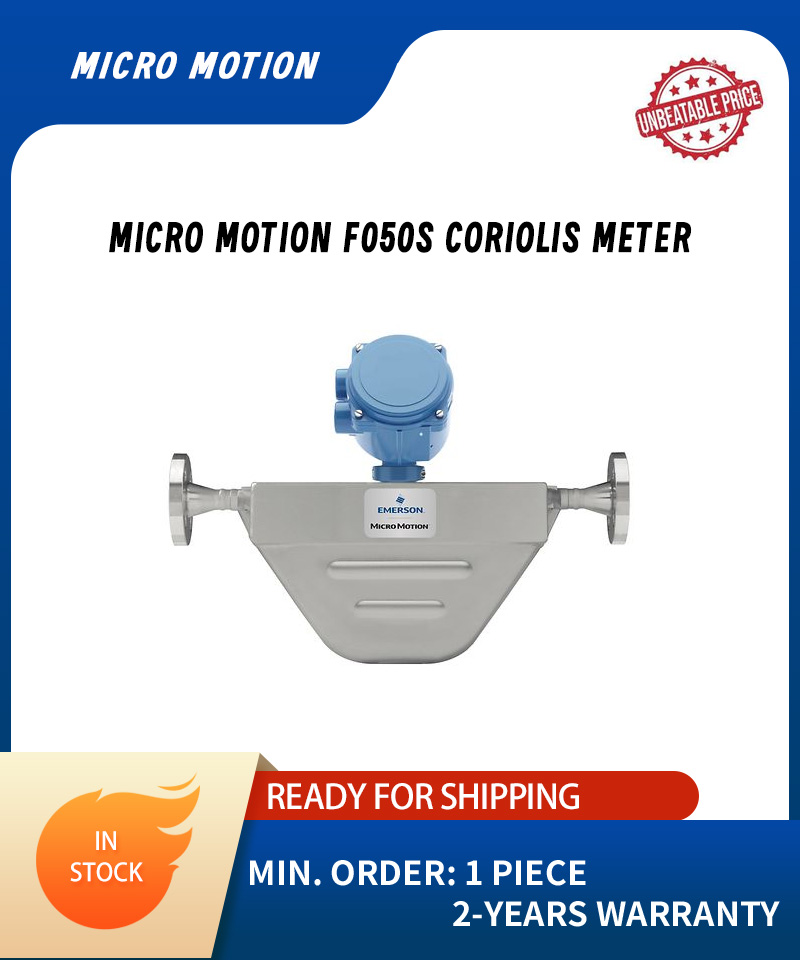

Micro Motion F050S Coriolis Meter

Feature Description
Measurement Accuracy Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design.
Material Options Available in 316L Stainless Steel and C-22 nickel alloy.
Diagnostics Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging.
Certifications Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Custody Transfer Approvals Approvals from MID OIML R 117, NTEP, Measurement Canada, and INMETRO Brazil.
Response Rates Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology.
Measurement Integrity Gain real-time and in-process measurement integrity assurance with Smart Meter Verification.
3D Model Interaction Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters.

Get a quote
