Description
As a B2B supplier, the Micro Motion F025S Coriolis Meter provides you with a cost-effective flow measurement solution, ensuring you stay competitive in a fast-paced market. Our robust supply chain management enables us to respond quickly to order demands, reducing delivery times and ensuring your production processes remain uninterrupted. Additionally, our after-sales service team offers professional technical support to help you resolve any issues, ensuring stable operation of your equipment. By choosing our products, you not only enhance measurement accuracy but also optimize your business efficiency and cost control.
| Specification | Details |
|---|---|
| Mass flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass flow repeatability (Liquid) | ±0.050% of rate |
| Volume flow accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume flow repeatability (Liquid) | ±0.050% of rate |
| Mass flow accuracy (Gas) | ±0.5% of rate |
| Mass flow repeatability (Gas) | ±0.25% of rate |
| Density accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature accuracy | ±1 °C ±0.5% of reading |
| Sensor maximum working pressure | 1,450 psig (100 barg) |
| Meter approvals, calibrations, and certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |

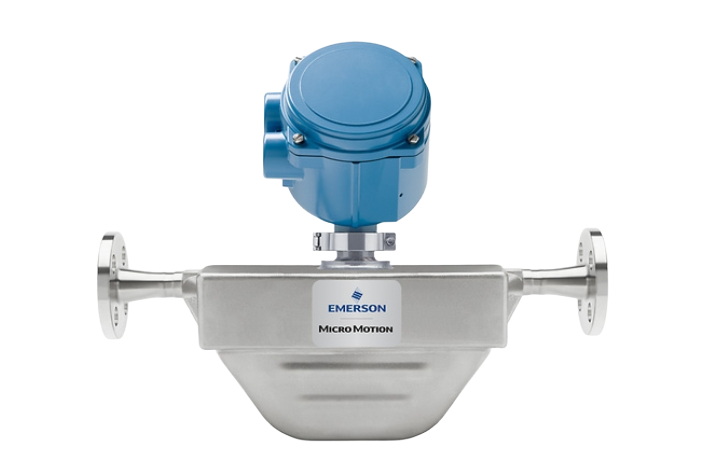

Micro Motion F025S Coriolis Meter
| Feature | Details |
|---|---|
| Measurement Accuracy | Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design |
| Material Options | Available in 316L Stainless Steel and C-22 nickel alloy |
| Diagnostics | Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging |
| Certifications | Broad range of meter approvals and certifications, including CSA, ATEX, IECEx, Ingress Protection 66/67, and NAMUR |
| Custody Transfer Approvals | Approved by MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil |
| Response Rates | Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology |
| Measurement Integrity | Gain real-time and in-process measurement integrity assurance with Smart Meter Verification |
| 3D Model Interaction | Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters |
