Description
Part Number: STT17H-BS-0-T0R-ENE-S10

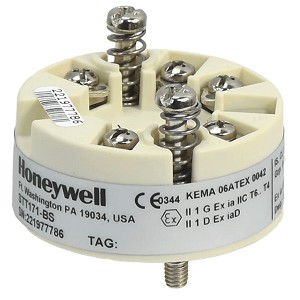

Model: STT17H Series Smart Temperature Transmitter
Manufacturer: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Features
- HART™/4-20 mA output
- RTD, T/C, Ohm or mV input
- Single or dual (difference or average) sensor input
- DIN form B headmount
- HART Multidrop capable
- NAMUR NE43 sensor error response
- Configurable using STT17C configuration tool and PC or HART field communicator
- Galvanic isolation
Ordering Information
| Model | STT17H | HART Protocol, 4-20mA output |
| Safety Approvals | BS | FM,CSA,ATEX , Intrinsically Safe , Class I, Div. 2, Groups A,B,C,D, T4 |
| No Option | 0 | No Option |
| Configuration | T | Custom Transmitter Configuration with Printed Report ** |
| Optional Certificates | 0 R |
No Option Certificate of Conformance/Origin |
| Housing | E | Field Mount: Aluminum with Beige Epoxy Coating |
| Cable/ Conduit Entry | N | 1/2\’ NPT Cable/ Conduit Entry |
| Integral Meter | E | E.U. Meter for Field Mount Housing |
| Mounting | S | Stainless Steel mounting bracket for 2\’ pipe |
| M20 adaptors | 1 | 1 adaptor for M20 x 1.5 wiring entry |
| Lightning Protection | 0 | No lightning protection supplied |
** If Custom Configuration option \’T\’ or the Custom Calibration option \’C\’ is ordered, the configuration or calibration information required must me be entered as a note on the order. Any of the following elements can be included, based on the selected model number:
(STT171, STT173, STT17H) Tag Number, CJC, Sensor Type, Sensor Wiring, Temperature Units, URV/LRV, Output Range, Output Limits, Sensor Error Action, Response Time.
(STT17F) Tag Number, Sensor Type, URV/LRV, Burnout- High or Low, Response Time
- Estimated Lead Time: 10 – 16 Weeks
- Shipping Weight: 8 Kg
