Analyse:Electric Motors, Fans, Blowers, Belt and Chain Drives, Gearboxes, Couplings, Centrifugal Pumps, Piston Pumps, Sliding Vane
Pumps,
Propeller Pumps, Screw Pumps, Rotary Thread/Gear/Cam Pumps, Piston Compressors, Centrifugal Compressors, Screw Compressors,
Tightly Connected Machines, MandrelMachine speed range 200 rpm to 12000 rpm
Diagnosis details
Plain text diagnostics, fault severity level (mild, moderate, severe, very severe), repair details, peaks cited, spectrum
Electrical Specifications
Quantum transformation
automatic A/D converters 4 channels, 24 bit
Available bandwidth 2 Hz to 20 kHz
sampling 51.2 Hz
Digital signal processing function
Auto-configured anti-distortion filter, high-pass filter, sampling, overlapping, windowing, FFT, and averaging
Sample rate 2.5 kHz to 50 kHz
dynamic range 128 dB
Signal-to-noise ratio 100 dB
FFT resolution 800 lines
Spectrum window Hanning
1/5
${data.index + 1}/${data.total}
Description
Key attributes
| Type | Testing Machine | Accuracy | / |
|---|---|---|---|
| place of origin | China | customized support | OEM |
| power | / | Protection Class | IP57 |
| Voltage | 110 V, 240 V, 220 V, Other | brand name | Fluke |
| warranty | 2 Years | Product | Fluke 810 Digital Vibrometer |
| Model No. | 810 | G.W | 3KG |
| Material | ABS | Accuracy | see specification |
| Display | LED Display | Temperature | -10 °C to +60 °C |
| Brand | Fluke | Warranty | 1 year |

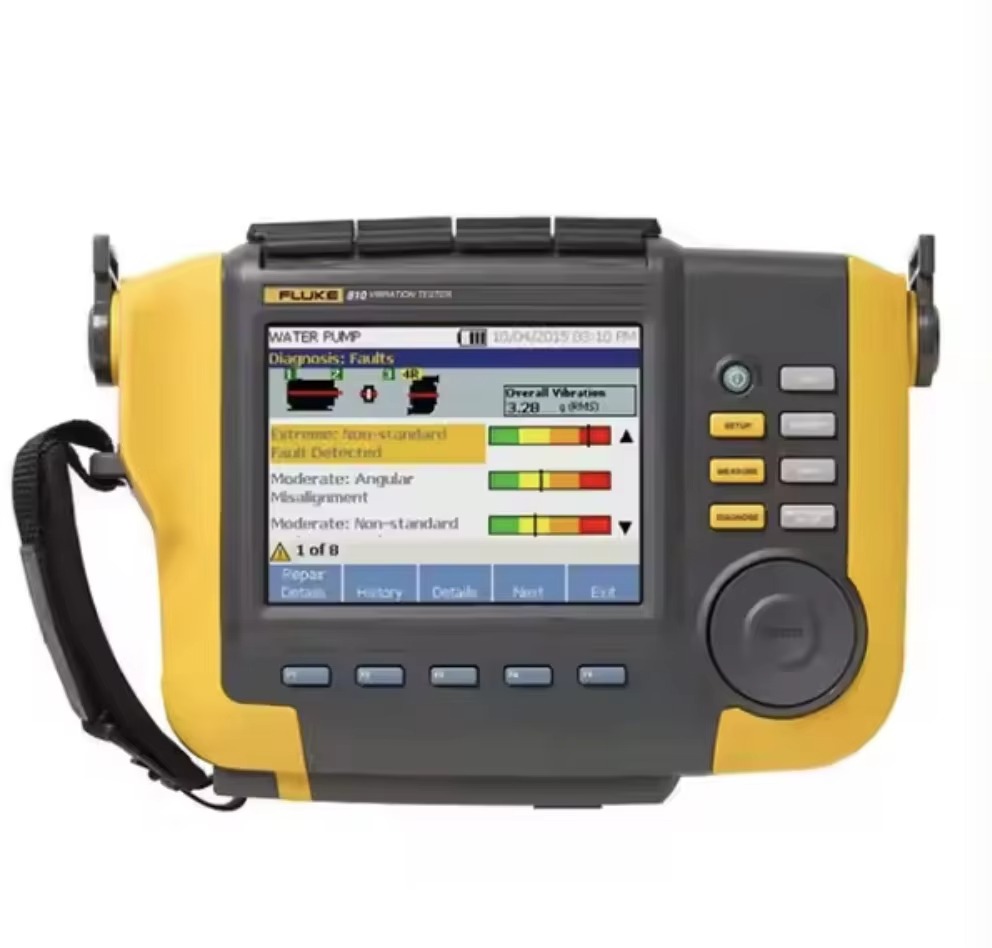

Fluke 810 Digital Vibrator with 220V LED Display
|
model number
|
Operating temperature
|
Storage temperature
|
Accuracy
|
Product name
|
|
FLUKE 810
|
-10 °C to +50 °C
|
-20 °C to +60 °C
|
± 0.01% or ± 1
|
Digital Vibrator
|
|
Item size
|
warranty
|
customized support
|
G.W
|
Origin
|
|
18.56*7.00*26.72 cm
|
1 year
|
OEM
|
3KG
|
China/UK/USA
|
