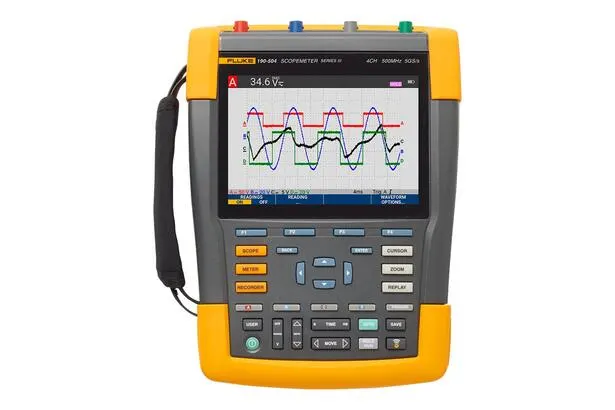

The Fluke 196 ScopeMeter high-performance oscilloscope offers specifications usually found on top-end bench instruments. With up to 100 MHz bandwidth and 1 GS/s real-time sampling and a deep memory of 27,500 points per input, it's ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery-powered instrument.
Features:
Dual-input ﾖ 100 MHz bandwidth
Up to 1 GS/s real time sampling per input
Digital Persistence for analyzing complex dynamic waveforms like on an analog scope (190)
Large, high resolution color or monochrome screen
Connect and view automatic triggering and a full range of manual trigger modes
Fast display update rate for seeing dynamic behavior instantaneously
Automatic capture and replay of 100 screens
27,500 points per input record length using ScopeRecord mode
TrendPlot paperless chart recorder for trend analysis up to 22 days
UP to 1000 V independently floating isolated inputs
1000 V CAT II and 600 V CAT III safety certified
Five hours rechargeable Ni-MH battery pack
Specifications
Bandwidth
Fluke 196B, Fluke 196C:
100 MHz
Real-time sample rate
Fluke 196B, Fluke 196C:
1 GS/s
Inputs and digitizers
2 plus external / DMM input
Independently floating isolated inputs
Up to 1000 V between inputs, references and ground
Timebase range
5 ns - 2 min/div
10 ns - 2 min/div (192B)
Input sensitivity
190B Models:
5 mV-100 V/div
Trigger types
Connect-and-Viewﾙ, Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External
Glitch capture
50 ns (5 µs/div - 1 min/div)
Scope measurements
Cursor:
7
Automatic:
30
Maximum record length
ScopeRecord mode:
27,500 pts per input
Scope mode:
3,000 pts per input
Memory
Screens:
10
Setups:
10
Display
190B Models:
144 mm full monochrome LCD with fast update rate
Persistence
190B Models:
n/a
Waveform Compare
190B Models:
Waveform reference only
Environmental Specifications
Operating Temperature
0 to 50ºC
Storage Temperature
-20 to +60°C
Operating Altitude
3,000 m
Safety Specifications
Electrical Safety
1,000V CAT II/600V CAT III (EN61010-1)
Mechanical & General Specifications
Size
256 x 169 x 64 mm
Weight
2.0 kg
Battery Life
NiMH:
4 hrs
RS-232 Interface
Optically isolated via optional PM9080/OC4USB for interfacing to Printer or PC
