Digital: 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec Operating: -10 °C to +50 °C; Storage: -40 °C to +60°C 0 % to 90 % to 35 °C; 75 % to 40 °C; 45 % to 50 °C 0.1 x (specified accuracy/°C) (< 18 °C or > 28 °C)2,000 meters 9 Volt Alkaline, NEDA 1604A/IEC 6LR61 Alkaline: 400 hours typical, without backlight Technical Data Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity of 0 % to 90 %. Maximum voltage between any terminal and earth ground Surge protection W Fuse for A input ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1
model number
temperature
Max Voltage
Operating altitude
Product name

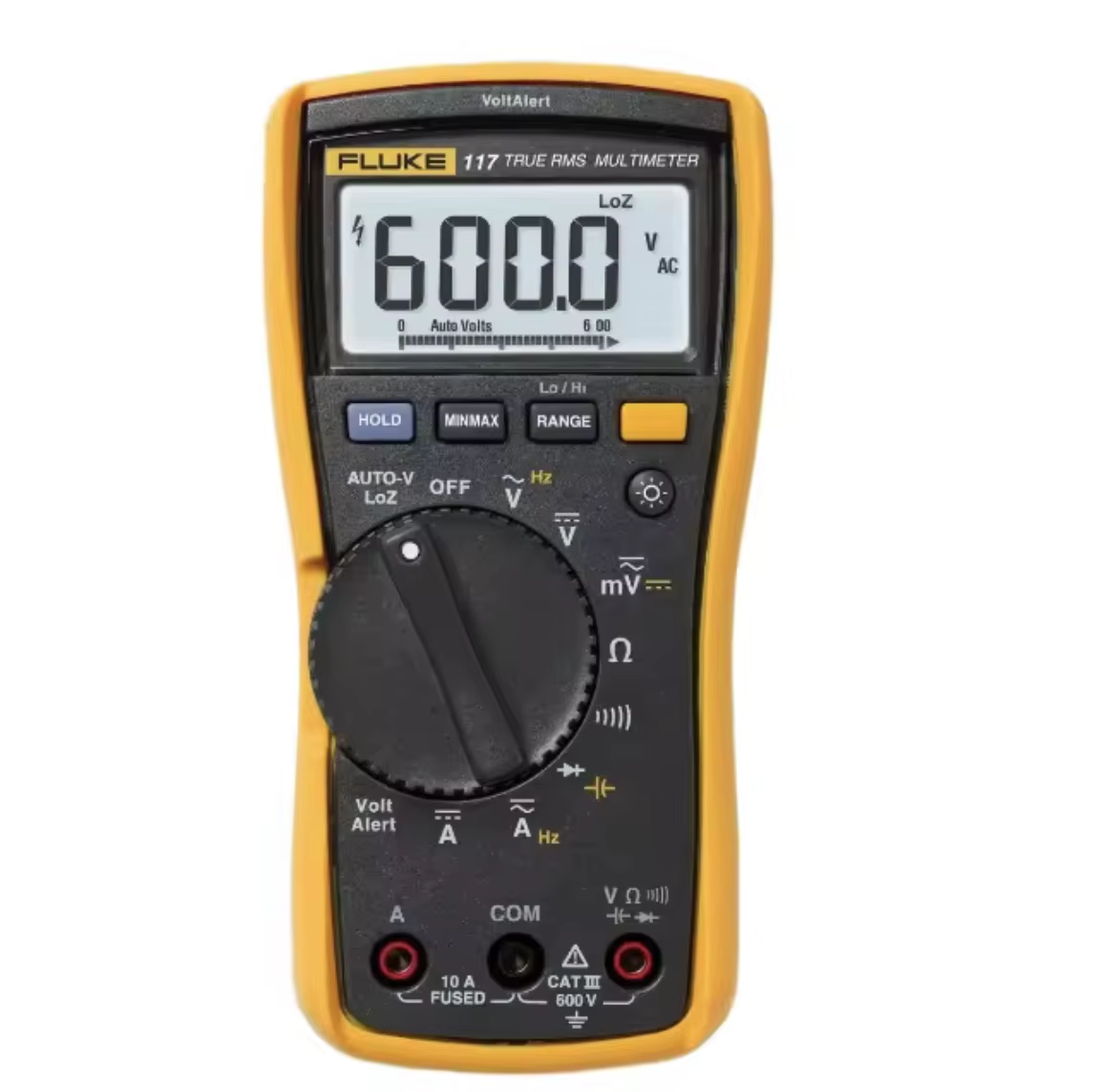

Fluke 114, 115, 116 and 117
Operating: -10 °C to +50 °C; Storage: -40 °C to +60 °C
