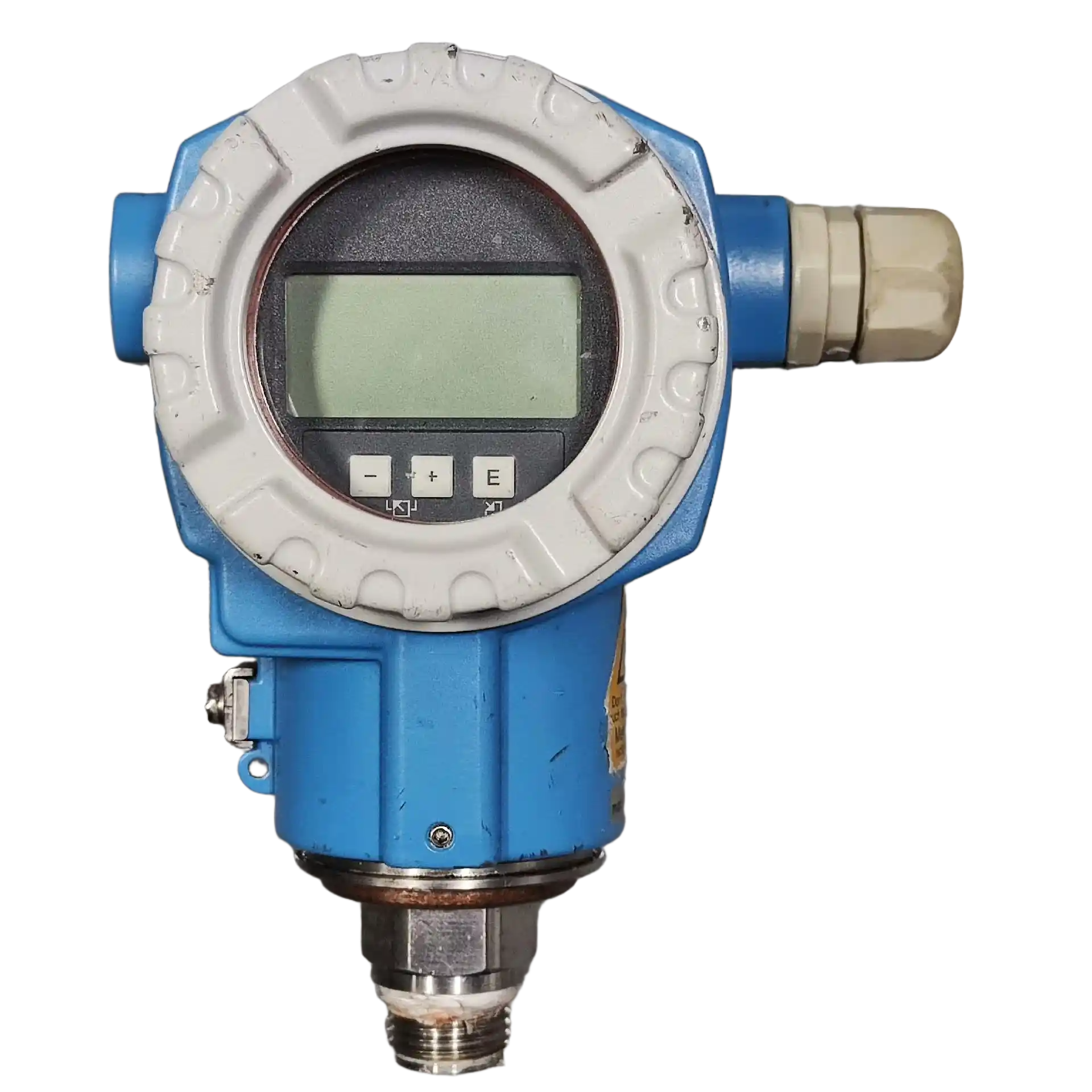

e+h,PMP71-AAA1WB1GAAAA | E+H Cerabar S PMP71 Pressure Transmitter

Name: e+h,PMP71-AAA1WB1GAAAA | E+H Cerabar S PMP71 Pressure Transmitter
Brand: e+h
Availability: InStock

Part Number: PMP71-AAA1WB1GAAAA

100% Brand New & Original

1-Year Warranty Included

Full Range of Models

Expert Engineer Support

Part Number: PMP71-AAA1WB1GAAAA

Model: Cerabar S PMP71 Pressure Transmitter

Brand: Endress+Hauser

Condition: New & Original in Factory Packing

Factory Warranty: 12 Months

Model	PMP71	Cerabar S PMP71
Approval	A	Non-hazardous area
Output; Operating	A	4-20mA HART; extern + LCD
Housing; Cover Sealing; Cable Entry	A	T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)
Sensor Range; Sensor Overload Limit	1W	400bar/40MPa/6000psi gauge; 600bar/60MPa/9000psi
Calibration; Unit	B
Membrane Material	1	316L
Process Connection	GA	Thread ISO228 G1/2 EN837, 316L
Fill Fluid	A	Silicone oil
Additional Option 1	A	Not selected
Additional Option 2	A	Not selected
