Description
Part Number: PMC71-AAC1KBRDABS

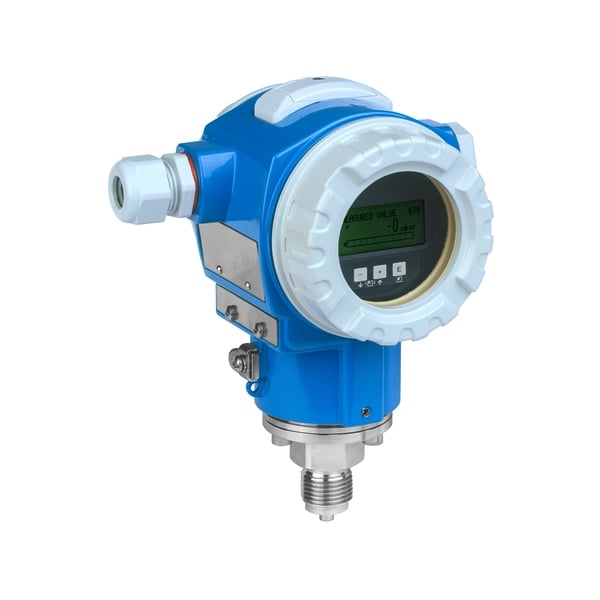

Model: Cerabar S PMC71 Pressure Transmitter
Manufacturer: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | PMC71 | Absolute and gauge pressure Cerabar PMC71 |
| Approval | A | Non-hazardous area |
| Output; Operating | A | 4-20mA HART; extern + LCD |
| Housing; Cover Sealing; Cable Entry | C | T14 Alu IP66/67 NEMA6P; EPDM; NPT1/2 thread, T14 = side cover |
| Sensor Range; Sensor Overload Limit | 1K | 2bar/200kPa/30psi gauge; 18bar/1800kPa/270psi |
| Calibration; Unit | B | **Customised; see additional spec. |
| Process Connection | RD | Thread ANSI MNPT1/2 hole 11.4mm, 316L |
| Seal | A | FKM |
| Additional Option 1 | B | 3.1 material certificate, wetted metallic parts, EN10204-3.1 inspection certificate |
| Additional Option 2 | S | GL/ABS marine approval |
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 6 Kg
