Description
Part Number: PMC51-AA21RD1HGBRLJA

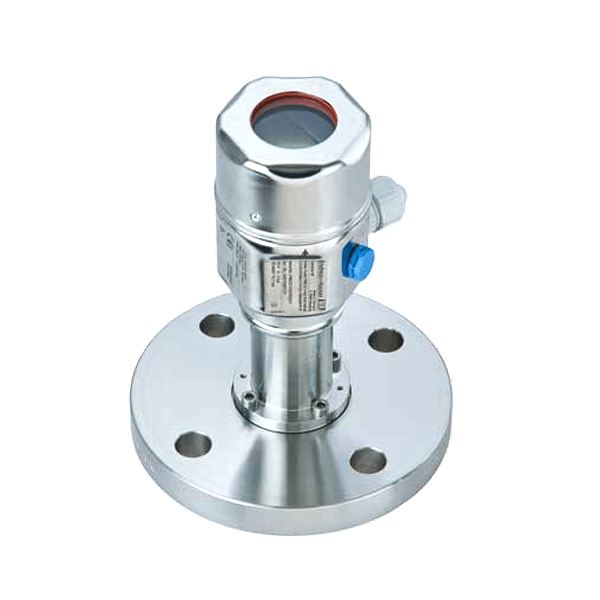

Model: Cerabar M PMC51 Pressure Transmitter
Manufacturer: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | PMC51 | Cerabar M PMC51 Pressure Transmitter |
| Approval | AA | Non-hazardous area |
| Output | 2 | 4-20mA HART |
| Display, Operation | 1 | LCD, push button on display/electronics |
| Housing | R | F15 stainless steel hygiene, glass window |
| Electrical Connection | D | Thread NPT1/2, IP66/68 NEMA4X/6P |
| Sensor Range | 1H | 1bar/100kPa/15psi gauge, 10mH2O/33ftH2O/400inH2O overload: 10bar/1MPa/150psi |
| Reference Accuracy | G | Standard |
| Calibration; Unit | B | Sensor range; mbar/bar |
| Process Connection | RLJ | Thread ANSI MNPT1/2 FNPT1/4, 316L |
| Seal | A | FKM |
- Estimated Lead Time: 3 Months
- Shipping Weight: 8 Kg
- Country of Origin: China
