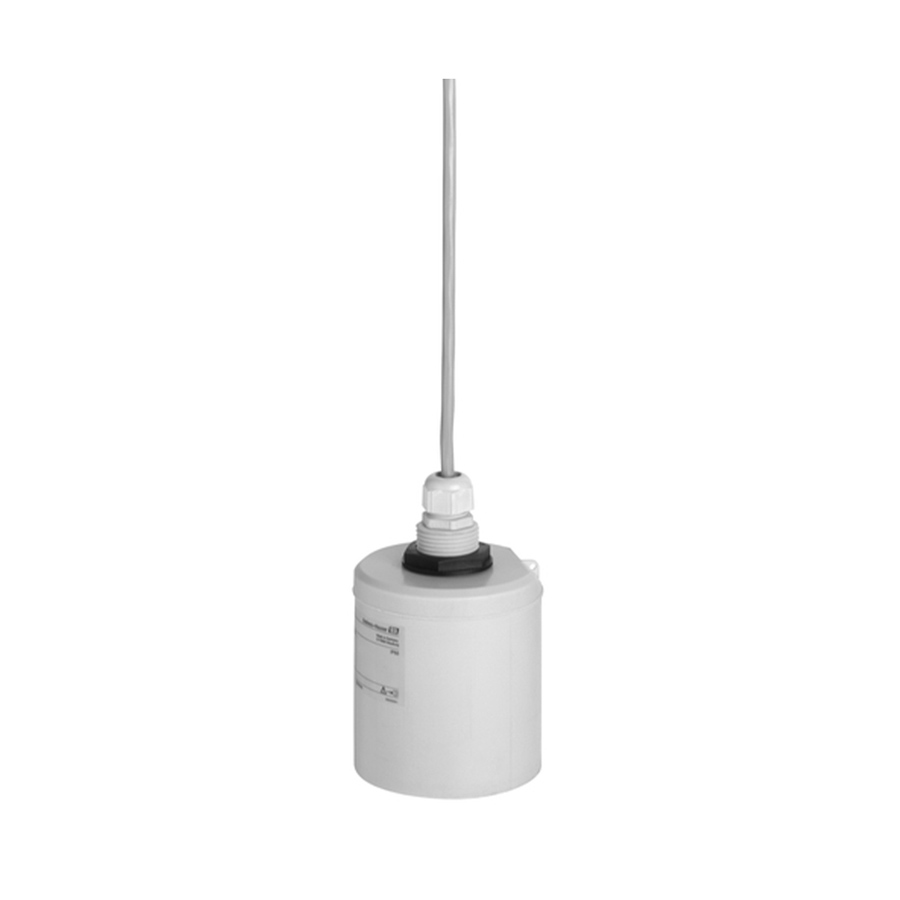

e+h,E+H Prosonic FDU92 Ultrasonic Level Sensor

The E+H Prosonic FDU92 Ultrasonic Level Sensor is designed for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 20m (65ft), solids 10m (33ft).

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

  • Process connection: Thread
  • Temperature: -40 to 203°F (-40 to 95°C)
  • Pressure: 10 to 58psi (0.7 to 4bar)
  • Maximum measuring range:
    • Liquids 65ft (20m)
    • Solids 33ft (10m)
  • Blocking distance: 0.4m (1.3ft)
  • International explosion protection certificates
