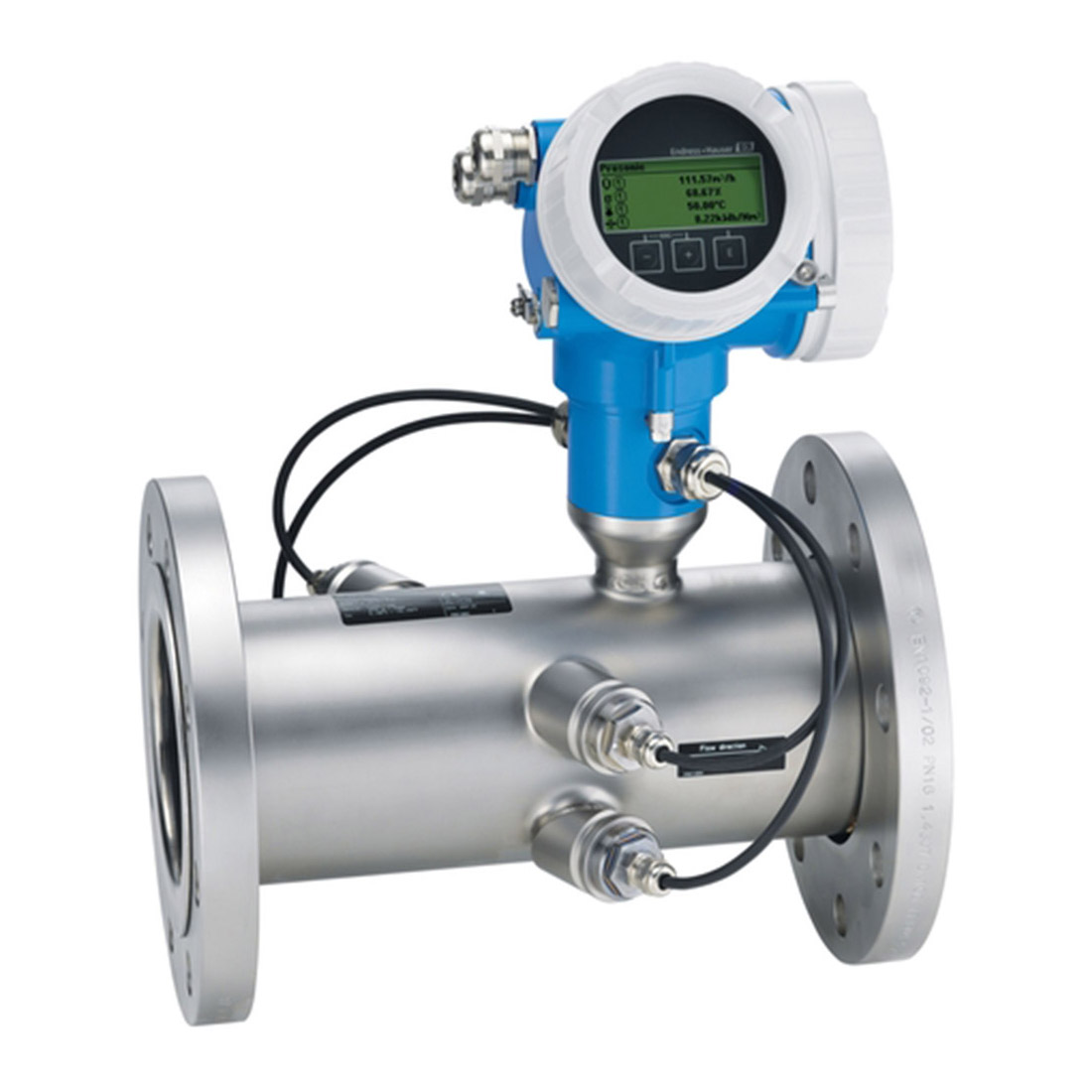

e+h,E+H Proline Prosonic Flow B 200 Ultrasonic Flow Meter

The E+H Proline Prosonic Flow B 200 ultrasonic flow meter features accurate and reliable measurement of wet biogas and digester gas, even under fluctuating process conditions. The flow meter uses a measuring principle unaffected by gas composition. With its unique integrated real-time methane fraction analysis, the Prosonic Flow B 200 enables continuous measurement and monitoring of gas flow as well as gas quality.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

The Prosonic Flow B 200 offers full bore design; robust, dual-compartment housing; and diagnostic capability for process transparency. The B 200 also offers a specialized sensor design optimized for low pressure gas. The meter features a separate connection compartment for convenient device wiring. In addition to efficient process control and energy balancing, Heartbeat Technology ensures compliance and process safety at all times. The display features touch control and background lighting, eliminating the need to open the device.

  • Measures flow, temperature and methane
  • DN 50 to 200 (2 to 8in) nominal diameter range
  • Accuracy up to ±1.5% of reading or ±0.1% of full scale
  • Repeatability:
    ±0.5% of reading for volume flow
    ±0.5% of full scale for methane
  • 32 to 176° F (0 to 80° C) medium temperature
  • 0.7 to 11 bar a (10.2 to 159 psi a) process pressure
  • ATEX, IECEx, CSA
  • IP66/67, type 4X
  • 4-line, illuminated display with touch control
