Description
E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. Digital communication options include HART, PROFIBUS DP, Modbus RS485, Profinet and Ethernet/IP. This E+H flow meter is housed in an IP66/67, Type 4X enclosure.

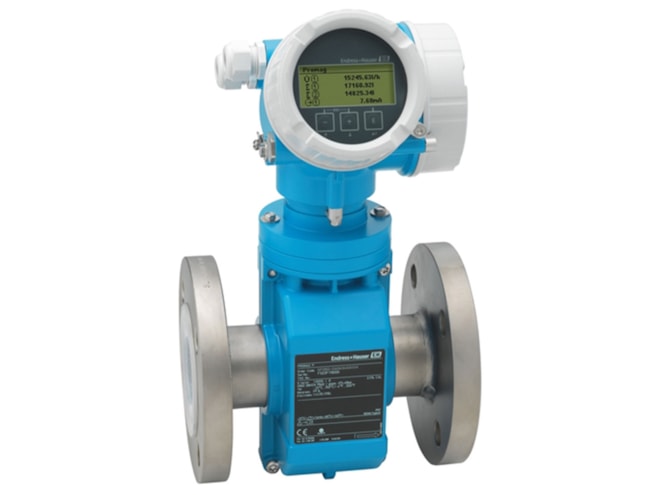

The E+H Proline Promag P 200 electromagnetic flow meter can measure flow from 1 gal/min up to 44,000 gal/min and is available with a PFA or PTFE liner. The PFA liner can handle application media from -4 to 302°F (standard) or 356°F (high-temperature option) and the PTFE liner offers a temperature range of -40 to 266°F. The standard maximum measured error is ±0.5% o.r. ±2 mm/s (0.08 in/s) and the Proline Promag P 200 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation).
Purchase details
- Measures volume flow and mass flow
- Medium Temperature Ranges:
- PFA Liner: –20 to 150°C (–4 to 302°F)
- PTFE Liner: –40 to 130°C (–40 to 266°F)
- 1 to 4850 gal/min measuring range
- Outputs:
- 4 to 20 mA HART (passive)
- Pulse/frequency/switch output (passive)
- Maximum Measured Error:
- Volume flow: ±0.5%
- DN 15 to 200 (1/2 to 8in) nominal diameter range
- PN 40, Class 300, 20K maximum process pressure
- No pressure loss
- 4-line backlit display option
- IP66/67, Type 4X standard enclosure
- ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN hazardous area approvals
- Predecessors: Promag 23P, Promag 50E, Promag 50P, Promag 53E, Promag 53P
