Description
E+H transmitters do not require proprietary communication system, rather they offer full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. The H 300 allows for up to three analog or digital outputs. Digital communication options include HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, and OPC-UA. This E+H flow meter is housed in an IP66/67, Type 4X enclosure standard, while IP69 protection is also available as an option.

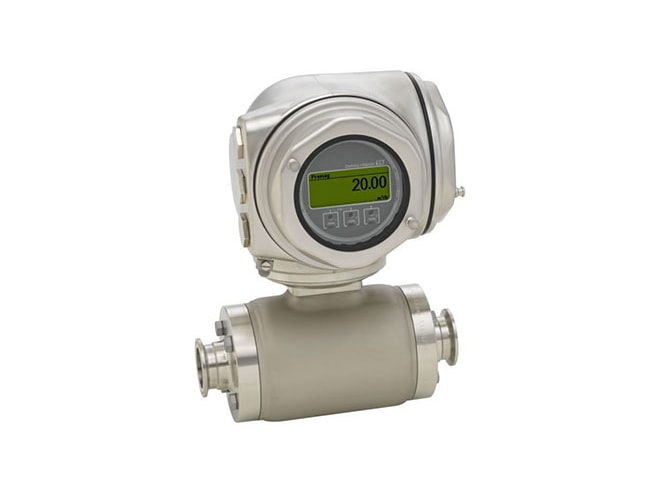

The E+H Proline Promag H 300 electromagnetic flow meter can measure flow from 0.015 gal/min up to 2,650 gal/min and can handle a media temperature range of -4 to 302°F (-20 to 150°C). The standard maximum measured error is ±0.5 % of reading ± 1 mm/s and the Proline Promag H 300 offers an improved accuracy of ±0.2 % of reading ± 2 mm/s. Optional Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV-attestation).
- DN 2 to 150 (1/12 to 6in) diameter ranges available
- Energy-saving flow measurement
- Bi-directional measuring principle
- PFA liner
- stainless steel (3A, EHEDG) sensor housing
- Wetted materials CIP, SIP cleanable
- Maintenance-free, no moving parts
- Full access to process and diagnostic information
