Description
Part Number: 91WA1-BA1B20ACB4AA

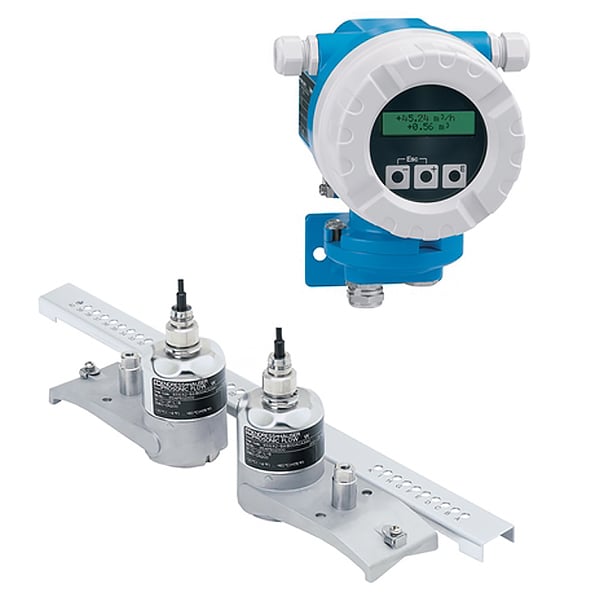

Model: Proline Prosonic Flow 91W Ultrasonic Flowmeter
Brand: Endress+Hauser
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 91WA1 | Prosonic Flow 91WA1 Clamp On 1Ch/1Set |
| Flow Sensor | B | DN50-DN300, -20…80oC, 2MHz 2\’-12\’, -4…176oF |
| Sensor Holder | A | Fixed retaining nut |
| Installation Set | 1 | DN50-DN200 2\’-8\’ |
| Sensor Cable | B | 10m/30ft, -20…70oC/-4…158oF |
| Cable entry sensor | 2 | Gland + conduit adapter NPT 1/2 |
| Additional Test, certificate | 0 | w/o |
| Approval | A | Non-hazardous area |
| Housing | C | Field Alu, IP67/NEMA4X |
| Cable Entry | B | Thread NPT 1/2\’ |
| Power Supply; Display | 4 | 85-250VAC; 2-line, push buttons |
| Adjustment; Software Feature | A | Factory setup; basic version |
| Output | A | 4-20mA HART + pulse |
- Estimated Lead Time: 10 – 12 Weeks
- Shipping Weight: 8 Kg
