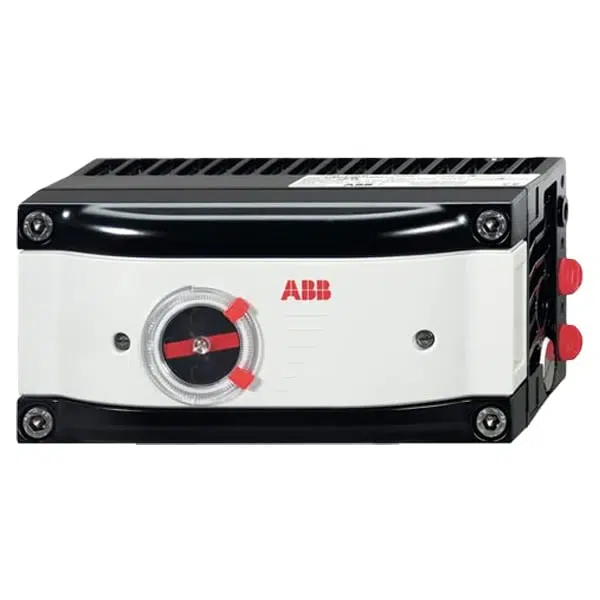

abb,V18348-10113100110 | ABB V18348 Electro-Pneumatic Positioner
1/1

abb,V18348-10113100110 | ABB V18348 Electro-Pneumatic Positioner

V18348-10113100110 features the following: Integrated electric actuator drive unit, motor, and control unit for simple structure and easy installation. High-precision position control function ensures accurate valve positioning. Supports multiple control signal interfaces, such as 4-20mA, HART, Profibus, etc., facilitating integration with various control systems. Optional accessories and fittings are available to meet the requirements of different application scenarios.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Weight 5 kg
Brand

ABB

Part Number: V18348-10113100110

Ordering Information
  • Model: V18348 – Electro-Pneumatic Positioner TZIDC-200 intelligent, software-configurable with local communication interface (LKS) and HART communication
  • Case/Mounting: 1
    Case made of aluminium, varnished, protection IP 65/NEMA 4X: For mounting to linear actuators acc. to DIN/IEC534/NAMUR or to rotary actuators acc. to VDI/VDE 3845
    See Options/Accessories for customer-specific mounting
    Note: Special mounting material is required.
  • 0: Always 0
  • Operation: 1 – with operator panel and display integrated in the enclosure cover
  • Explosion Protection: 1 – ATEX Ex 2 G EEx d IIC T4, T5, T6
  • Output/safe position (in case of an electrical power failure): 3 – Double acting, fail safe
  • Connections¹: 1 – Cable: Thread M20 x 1.5; Air pipe: Thread G 1/4
  • Option modules for analog or digital position feedback: 0 – Without
  • Mechanical kit for digital position feedback (option): 0 – Without
  • Parameter setting/bus address: 1 – Factory setting for HART devices
  • Design (varnish/coding): 1 – Standard
  • Device identification cable: 0 – without
        EEx d cable glands see accessories.
