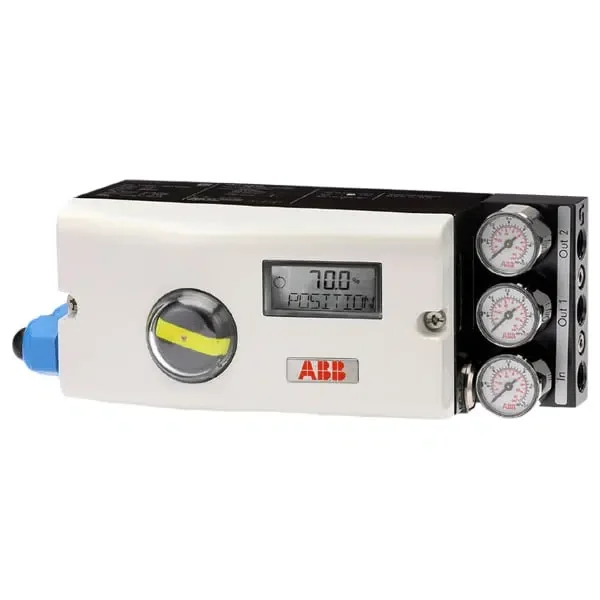

abb,V18345-2010120101 | ABB V18345 Valve Positioner

V18345-2010120101 has the following features: Integrated electric actuator drive unit, motor, and control unit, with a simple structure and easy installation. High-precision position control function, capable of accurately controlling the valve position. Supports multiple control signal interfaces, such as 4-20mA, HART, Profibus, etc., making it convenient to integrate with various control systems. Optional accessories and fittings are available to meet the requirements of different application scenarios.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Weight 2 kg
Dimensions 17 × 11 × 11 cm
Weight

2.01Kg
Brand

ABB

Part Number: V18345-2010120101

Ordering Information
  • TZIDC-120 Intelligent Positioner: V18345 – Intelligent, configurable with indicator and operator panel
  • Optional mechanical kit for digital position feedback: 2 – Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting with mechanical position indicator
  • 0 – Always 0
  • Input / communication port: 1 – Input 4…20 mA, two-wire with connector plug for LKS adapter
  • Explosion protection: 0 – without
  • Output / safe position (in case of an electrical power failure): 1 – Single acting, fail safe
  • Connections: 2 – Cable: Thread 1/2-14 NPT; Air pipe: Thread 1/4-18 NPT
  • Option modules for analog or digital position feedback: 0 – without
  • Optional mechanical kit for digital position feedback: 1 – Mechanical kit for digital position feedback with proximity switches SJ2-SN (NC or logical 1)
  • 0 – Always 0
  • Design (varnish / coding): 1 – Standard
