Description
Part Number: TTH300-E1-H-BS-M5

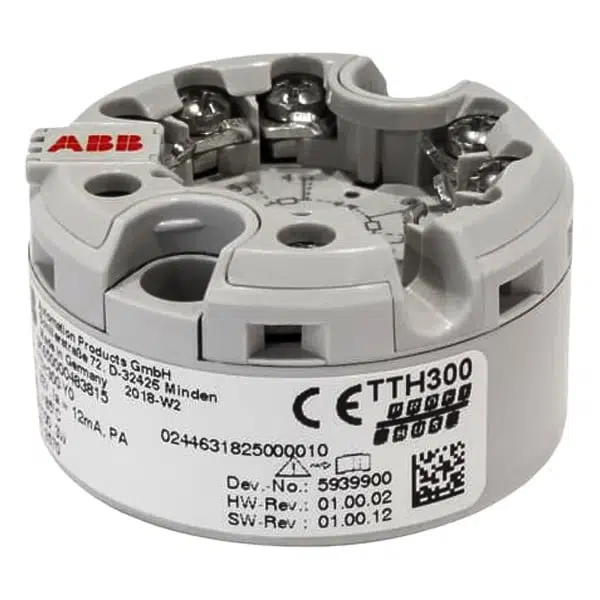

Model: TTH300 Head-Mounted Temperature Transmitter
Manufacturer: ABB
Description
- Sensor error adjustment
- Sensor redundancy
- Sensor drift monitoring
- Two universal sensor inputs, each for RTD, thermocouple, O, mV
- Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
- Various sensor error-calibration possibilities
- Sensor backup / automatic sensor redundancy switching
- Redundancy behaviour configurable for increased availability, increased safety or increased accuracy
- Accuracy 0.1 %, long-term stability 0.05 % per year
- Wire break/corrosion monitoring in accordance with NE 89
- Device status signalling and freely configurable diagnostic categorization with diagnostic history according to NE 107
- Event monitor for logging critical events
- Configuration monitor for configuration changes
- Turnable LCD indicator with operating buttons
Ordering Information
- Model: TTH300 – TTH300 head-mounted temperature transmitter, Pt100 (RTD), thermocouples, electrical isolation
- Explosion protection: E1 – ATEX intrinsic safety type of protection:
Zone 0: II 1 G Ex ia IIC T6,
Zone 1 (0): II 2 (1) G Ex [ia] ib IIC T6,
Zone 1 (20): II 2 G (1D) Ex [iaD] ib IIC T6 - Communication protocol: H – HART
- Configuration: BS – Standard configuration
- Language of documentation: M5 – English
- Estimated Lead Time: 2 – 4 Weeks
- Shipping Weight: 1 Kg
