abb,ABB V18345 | TZIDC ELECTRO-PNEUMATIC POSITIONER | 4-20MA INPUT

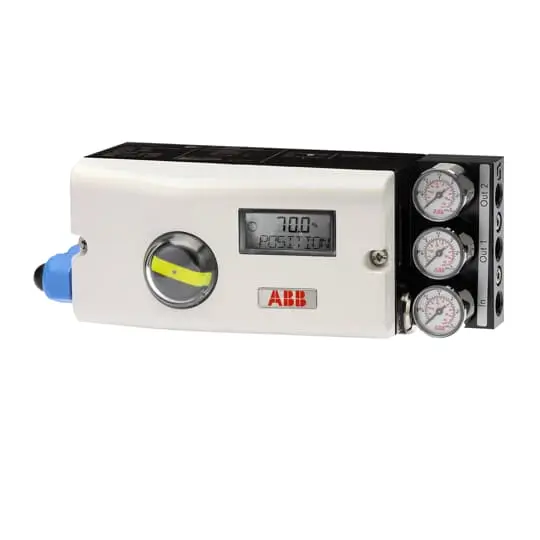

The ABB V18345(TZIDC) is an electronically configurable positioner with communication capabilities designed for mounting to pneumatic linear or part-turn actuators. It features a small and compact design, a modular construction, and an excellent cost-performance ratio.

100% Brand New & Original
1-Year Warranty Included
Full Range of Models
Expert Engineer Support

Description

Weight 2 kg
Dimensions 17 × 11 × 11 cm
Weight

2.01Kg
Brand

ABB

The ABB V18345(TZIDC) is an electronically configurable positioner with communication capabilities designed for mounting to pneumatic linear or part-turn actuators. It features a small and compact design, a modular construction, and an excellent cost-performance ratio.
Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

Valve Positioner Features

  • 4-20 mA Input, 2 wire
  • Connector plug for LCI adapter and FSK module for HART
  • Fail save and fail freeze function – selectable safe position of valve
  • Output/safe position – single acting, fail safe
  • No explosion protection
  • Cable Thread M20 x 1.5
  • Air pipe: Thread G 1/4
  • Approvals ATEX, IECEx, FM, CSA, EAC TR-CU-012
