Description
Part Number: 266HRHPRRA7LSB7

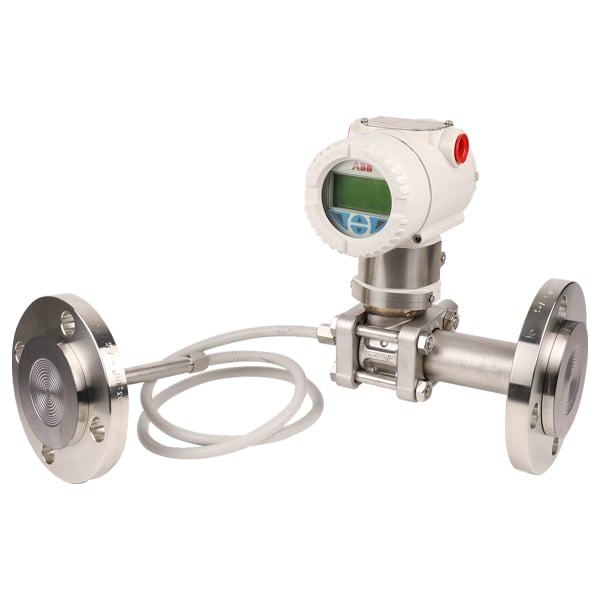

Model: 266HRH Gauge Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Base Model | 266HRH | Gauge Pressure Transmitter with remote seal – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | P | 40 and 2400 kPa 0.4 and 24 bar 5.8 and 348 psi |
| Diaphragm material / Fill fluid | R | AISI 316 L ss Silicone oil (Note 1) NACE |
| Process connection | R | Remote seal (except button type) (one seal to be quoted separately) |
| Housing material and electrical connection | A | Aluminium alloy ( barrel version) 1/2 – 14 NPT (Note 2) |
| Output/Additional options | 7 | HART and 4 to 20 mA – Standard functionality (Note 1, 3) |
| Integral LCD | LS | Integrated digital LCD display (ONLY SELECTABLE WITH OUTPUT CODE 7) (Note 4) |
| Mounting bracket (shape and material) | B7 | For pipe/wall mounting – AISI 316 L ss |
NOTE:
- Not available with Sensor code Z
- Not available with Output code 9
- Not available with Sensor code W
- Not available with Hazardous area certification code WM, WN, WP
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
